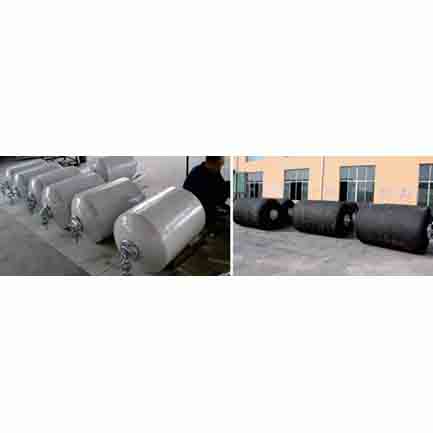

Foam Filled Fender for ship

Place of Origin: Made In China
Specification: Please contact us for details.

Click here to send inquiry via whatsapp

Category:

Foam Filled Fender for ship

Features

  1. Foam – filled fenders have excellent floating performance and are not affected by tidal differences, allowing them to remain at the ideal water level.
  2. Easy to install and maintain, with high safety.
  3. Particularly suitable for large – scale wharves, jetty – type wharves, and as emergency fenders between ships.
  4. Large – sized foam – filled fenders can be equipped with additional tire protection chains and lifting lugs.
  5. The outer layer can be made of polyurethane, rubber, or special plastic materials, and the performance can be adjusted by changing the elastic modulus of the materials to meet different user requirements.
  6. Foam Filled Fender has good floating performance, it will not be affected by the tide and the fender can be kept at an ideal water level.
  7. Simple installation and repair.
  8. Applicable for pier and dock with large tide scope, emergency standby purpose between ships.
  9. Large Foam Filled Fender will need to add chain and tire net on the surface.
  10. The outer layer of Foam Filled Fender can use polyurethane, rubber and special plastic etc material and the different performance can be met by adjusting the resilience modulus.

Specification Performance

Spec. (ΦD×L) (mm) Reaction Force (kN) Energy Absorption (kN·m) Compression Deflection 60%
Φ300×500 36 1.9
Φ400×600 42 2
Φ500×1000 66 8
Φ600×1000 80 11
Φ750×1500 150 26
Φ1000×1500 198 50
Φ1000×2000 261 69
Φ1200×2000 310 99
Φ1200×2500 390 113
Φ1500×3000 591 217
Φ1700×3000 659 270
Φ2000×3500 922 458
Φ2000×4000 1020 506
Φ2200×4500 1330 682
Φ2500×4000 1340 778
Φ2500×5000 1635 992
Φ3000×5000 1990 1422
Φ3000×6000 2370 1702
Φ3300×6500 2856 2248

Notes:

  1. Performance tolerance: ±10%;
  2. Other specifications can be manufactured according to client’s requirement.

Attention please: The description may be different with the product, please contact us for quotation.
