Fire Water Nozzles

Fire Water Nozzles

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

Fire Water Nozzles – High-Performance Firefighting Nozzles for Solid, Liquid, and Electrical Fires

Product Overview
Our Fire Water Nozzles are advanced fire extinguishing tools designed to deliver powerful, adaptable water streams for a wide range of emergency scenarios. When connected to a standard fire hose, these nozzles can produce both a dense, penetrating water column for solid material fires and a fine water mist for charged electrical fires, combustible dust, and certain oil fires. Built for reliability and ease of use, our nozzles are available in multiple configurations—including manual, automatic, piercing, water wall, and foam-compatible models—to meet diverse firefighting needs.

Key Features & Benefits

  • Multi-Pattern Operation: Switch between straight stream and fog patterns for optimized fire suppression.

  • Long Jetting Range & Minimal Recoil: Enables accurate targeting and operator control even at high flow rates.

  • Portable & Durable: Lightweight yet rugged hard-anodized aluminum and stainless-steel construction.

  • Wide Compatibility: Available with Storz, NH, BSP, Russian, and other coupling types.

  • Versatile Applications: Effective on Class A, B, C, and electrical fires.

Product Line Overview

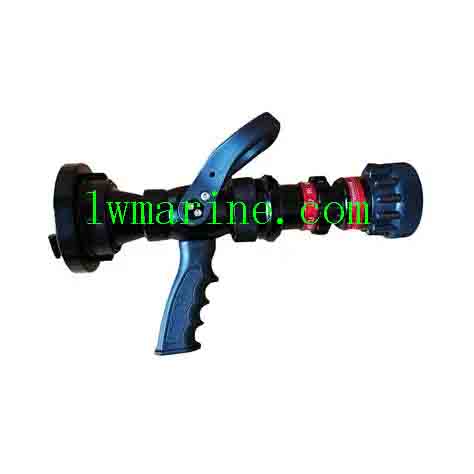

1. Manual Fire Water Nozzle – Model QLD5.0/4III-SX

  • Weight: 1.5 kg

  • Body Material: Hard-anodized aluminum

  • Handle: Red injection-molded nylon

  • Nozzle Bumper: Rubber

  • Inlet: 1.5″ (40mm) with swivel

  • Flow Control: 50–230 L/min selectable + flush cleaning function

  • Working Pressure: 6 bar

  • Max Reach: 20 m

  • Fog Pattern: Adjustable up to 120° via ABS or stainless-steel spinning teeth

2. Automatic Pressure Regulation Nozzle – Model QLD8.0/30-IV

  • Weight: 4.5 kg

  • Flow Rate: 400–2000 L/min (100–500 GPM)

  • Working Pressure: 7 bar

  • Max Reach: 60 m

  • Fog Angle: 120° (fixed rubber teeth)

  • Feature: Automatic constant pressure and flow regulation

3. Water Wall Nozzle – Model SX-WN

  • Weight: 2.39 kg

  • Body: Hard-anodized aluminum | Water Wall: Stainless steel

  • Flow: 500 L/min (135 GPM) @ 10 bar

  • Protection Coverage: Creates a curtain 85 ft wide × 23 ft high

  • Application: Ideal for creating protective water barriers in hazardous environments

4. Piercing Nozzle – Model SX-PN

  • Weight: 3.4 kg

  • Nozzle Tip: Stainless steel piercing head

  • Flow: 120–480 L/min (30–125 GPM)

  • Max Reach: 40 m

  • Applications: Designed for penetrating deep-seated fires in cotton, coal piles, hay, and vertical structures

5. Automatic Nozzle with Foam Attachment – Model SX-AN-FA

  • Weight: 3 kg

  • Flow: 200–760 L/min (70–200 GPM)

  • Foam Attachment: Low-expansion aluminum aspirator

  • Working Pressure: 7 bar

  • Max Reach: 50 m

  • Fog Pattern: Fixed rubber teeth, 120° fog angle

The description/sizes may be different with goods, please check with us when order.
