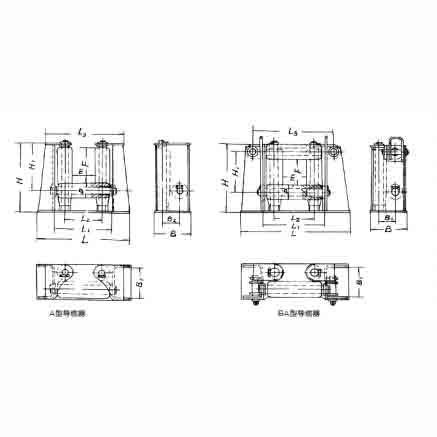

FAIRLEAD WITH HORIZONTAL ROLLER

Roller Fairlead with Horizontal Roller
(Standard: CB*3062-79)
Model: 265 YHS-006

Wire Rope Dia. (mm)	Nylon Rope Dia. (mm)	E	F	D	d	L	L1	L2	L3	B	G1	G2	H	H1	Weight (kg)
19.5	36	200	257	100	40~0.5	644	416	300	544	238	194	108	508	330	138
22.5	40	200	275	120	50~0.5	728	456	320	608	280	232	128	552	360	212
26.0	45	200	311	130	55~0.5	776	480	330	646	304	250	138	606	405	273
30.0	70	220	328	150	65~0.5	880	540	370	730	348	288	158	670	435	401
34.5	80	240	358	160	70~0.5	940	580	400	780	370	308	168	710	470	469
37.5	85	240	383	180	80~0.5	1030	620	420	850	417	345	190	770	510	678
40.0	90	240	411	200	90~0.5	1136	686	460	936	459	385	210	820	550	866
42.0	100	260	450	230	100~0.5	1256	746	490	1026	521	445	240	910	605	1197
46.0	110	300	493	260	120~0.5	1430	850	560	1170	590	500	270	1000	670	1741
48.0	120	320	563	320	150~0.5	1690	960	640	1370	714	620	330	1130	770	2811

Wire Rope Dia. (mm)	Nylon Rope Dia. (mm)	E	F	D	d	L	L1	L2	L3	B	G1	G2	H	H1	Weight (kg)
19.5	36	200	194	100	40~0.5	744	416	300	544	238	194	108	508	294	173
22.5	40	200	196	120	50~0.5	848	456	320	608	280	232	128	552	316	264
26.0	45	200	228	130	55~0.5	906	480	330	646	304	250	138	606	358	337
30.0	70	220	230	150	65~0.5	1030	540	370	730	348	288	158	670	435	485
34.5	80	240	250	160	70~0.5	1100	580	400	780	370	308	168	710	410	583
37.5	85	240	285	180	80~0.5	1210	620	420	850	417	345	190	770	445	823
40.0	90	260	275	200	90~0.5	1336	696	460	936	459	385	210	820	475	1064

Note: The description may be different with the product, please contact us for quotation.
