SERIES F7369-JIS 16K Cast Iron Gate Valve
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-16K

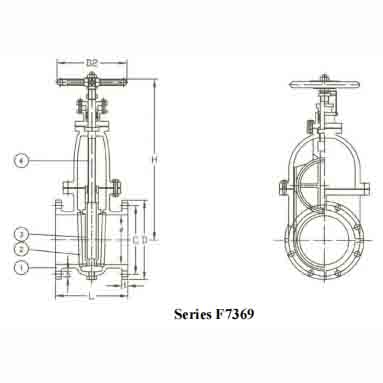

Series F7369
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Cast Iron | FC200 |
| 2- Seat | SUS/Bronze | SCS2/BC6 |
| 3- Disc | SUS/Bronze | SCS2/BC6 |
| 4- Stem | SUS/Brass | SUS403/C3771BD |
Test Pressure MPa[kgf/cm²]
(No specific values were provided in the extracted table for Body/Seat; the original headers show “Nominal Diameter”, “Body”, “Seat” but no data.)
JIS F7369 Dimensions
| Size | L | D | C | No | h | t | H | D2 | KG |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 200 | 155 | 120 | 8 | 19 | 16 | 300 | 140 | 22.5 |
| 65 | 220 | 175 | 140 | 8 | 19 | 18 | 350 | 160 | 25 |
| 80 | 234 | 200 | 160 | 8 | 23 | 20 | 400 | 180 | 33 |
| 100 | 254 | 225 | 185 | 8 | 23 | 22 | 450 | 200 | 52 |
| 125 | 274 | 270 | 225 | 8 | 25 | 22 | 520 | 224 | 72 |
| 150 | 294 | 305 | 260 | 12 | 25 | 24 | 580 | 250 | 95 |
| 200 | 328 | 350 | 305 | 12 | 25 | 26 | 700 | 315 | 143 |
| 250 | 388 | 430 | 380 | 12 | 27 | 28 | 840 | 400 | 203 |
| 300 | 490 | 480 | 430 | 16 | 27 | 36 | 1010 | 500 | 430 |
| 350 | 540 | 540 | 480 | 16 | 33 | 38 | 1070 | 560 | 580 |
Note: The description may be different with the product, please contact us for quotation.
