SERIES F7358-JIS5K Lift Check Globe Valve
SERIES F7359-JIS5K Lift Check Angle Valve
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-5K

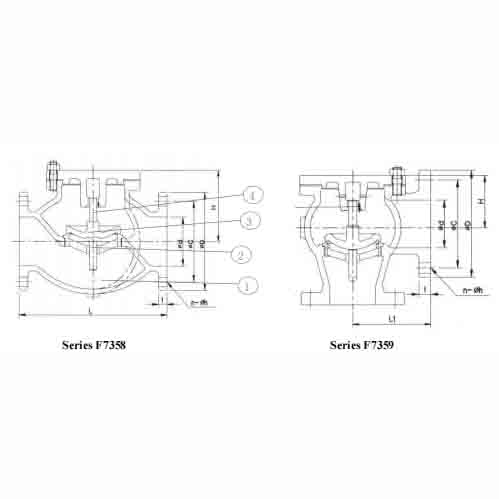

Series F7358
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Cast iron | FC200 |
| 2- Seat | SUS/Bronze | SUS403/BC6 |
| 3- Disc | SUS/Bronze | SUS403/BC6 |
| 4- Stem | SUS/Brass | SUS403/C3771BD |
Series F7359
| Part Nr. | Material | Code |
|---|---|---|
| Body | Test pressure MPa[kgf/cm²] | 1.04[10.5] |
| Seat | 0.76[7.7] |
(Note: The original table for F7359 appears to list test pressures under “Material” and “Code” columns. This is presented as-is.)
JIS F7358 & JIS F7359 Dimensions
| JIS F7358 | JIS F7359 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | L | D | C | h | KG | Size | L1 | D | C | h | KG |
| —— | —- | —- | —- | ———- | —- | —— | —- | —- | —- | ———- | —- |
| 50 | 210 | 130 | 105 | 4×Φ15 | 11.3 | 50 | 100 | 130 | 105 | 4×Φ15 | 9.5 |
| 65 | 250 | 155 | 130 | 4×Φ15 | 16.8 | 65 | 115 | 155 | 130 | 4×Φ15 | 13.8 |
| 80 | 280 | 180 | 145 | 4×Φ19 | 23.2 | 80 | 130 | 180 | 145 | 4×Φ19 | 18.9 |
| 100 | 340 | 200 | 165 | 8×Φ19 | 32.5 | 100 | 150 | 200 | 165 | 8×Φ19 | 25.6 |
| 125 | 410 | 235 | 200 | 8×Φ19 | 48.1 | 125 | 170 | 235 | 200 | 8×Φ19 | 36.7 |
| 150 | 480 | 265 | 230 | 8×Φ19 | 67.9 | 150 | 190 | 265 | 230 | 8×Φ19 | 50.9 |
| 200 | 570 | 320 | 280 | 8×Φ23 | 115 | 200 | 220 | 320 | 280 | 8×Φ23 | 95 |
Note: The description may be different with the product, please contact us for quotation.
