SERIES F7334A-JIS 5K&10K Bronze Hose Globe Valve
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-5K&10K

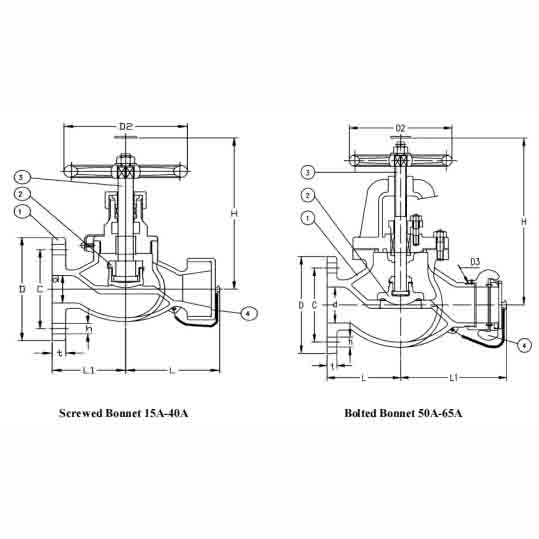

Screwed Bonnet 15A-40A
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Bronze | BC6 |
| 2- Disc | Bronze | BC6 |
| 3- Stem | Brass | C3771BD |
| 4- Coupling | Bronze | BC6 |
Bolted Bonnet 50A-65A
| Nominal Pressure | 5K | 10K | |
|---|---|---|---|
| Hydraulic Inspection | Body | 12kg | 24kg |
| Seat | 8kg | 12kg |
F7334A – 5K
| Type | Size | L | L1 | D | C | NO. | h | t | H | D2 | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F7334A | 15 | 73 | 50 | 80 | 60 | 4 | 12 | 9 | 130 | 80 | 2.51 |
| 25 | 78 | 60 | 95 | 75 | 4 | 12 | 10 | 160 | 125 | 3.55 | |
| 40 | 128 | 80 | 120 | 95 | 4 | 15 | 12 | 190 | 140 | 6.26 | |
| 50 | 160 | 105 | 130 | 105 | 4 | 15 | 14 | 255 | 160 | 12.90 |
F7334A – 10K
| Type | Size | L | L1 | D | C | NO. | h | t | H | D2 | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F7334A | 15 | 73 | 55 | 95 | 70 | 4 | 15 | 12 | 130 | 80 | 2.76 |
| 25 | 73 | 65 | 125 | 90 | 4 | 19 | 14 | 160 | 125 | 4.2 | |
| 40 | 133 | 90 | 140 | 105 | 4 | 19 | 16 | 190 | 140 | 8.4 | |
| 50 | 165 | 110 | 155 | 120 | 4 | 19 | 16 | 270 | 160 | 12.90 | |
| 65 | 200 | 135 | 175 | 140 | 4 | 19 | 19 | 295 | 200 | 23.50 |
Note: The description may be different with the product, please contact us for quotation.
