Series F7321(C)-JIS5K
Ductile Iron Globe Valve (SDNR)
Manufactured in accordance to JIS F7400

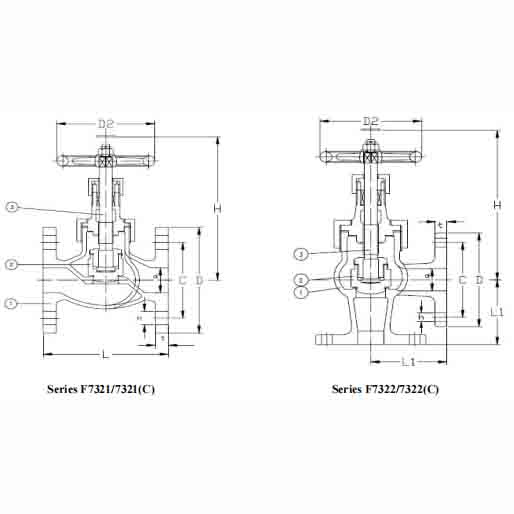

Series F7321/7321(C)
| Part Nr. | Material | Code |
|---|---|---|
| 1- Body | Ductile iron | FCD450 |
| 2- Seat | SUS/Bronze | SCS2/BC6 |
| 3- Stem | SUS/Brass | SCS2/C3771BD |
Series F7322/7322(C)
| Nr. | Test pressure MPa[kgf/cm²] |
|---|---|
| Body | 1.04 |
| Seat | 0.76 |
JIS F7321/7321(C)
| Size | L | D | C | h | KG |
|---|---|---|---|---|---|
| 5K15 | 100 | 80 | 60 | 4×Φ12 | 1.98 |
| 5K20 | 110 | 85 | 65 | 4×Φ12 | 2.8 |
| 5K25 | 120 | 95 | 75 | 4×Φ12 | 4.18 |
| 5K32 | 140 | 115 | 90 | 4×Φ15 | 5.53 |
| 5K40 | 160 | 120 | 95 | 4×Φ15 | 7.08 |
JIS F7322/7322(C)
| Size | L1 | D | C | h | KG |
|---|---|---|---|---|---|
| 5K15 | 55 | 80 | 60 | 4×Φ12 | 1.89 |
| 5K20 | 60 | 85 | 65 | 4×Φ12 | 2.65 |
| 5K25 | 65 | 95 | 75 | 4×Φ12 | 3.85 |
| 5K32 | 80 | 115 | 90 | 4×Φ15 | 5.29 |
| 5K40 | 85 | 120 | 95 | 4×Φ15 | 6.86 |
Note: The description may be different with the product, please contact us for quotation.
