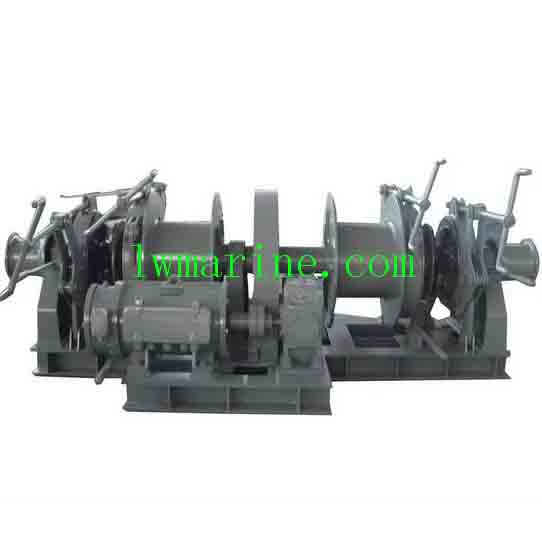

Two-Axis Electric Combined Windlass for Commercial Marine Vessels
Engineered for superior performance in demanding maritime operations, our Two-Axis Electric Combined Windlass provides reliable anchor handling and mooring capabilities for commercial ships and large vessels. This robust windlass system combines anchor chain and warping drum functionality in a single integrated unit, delivering exceptional power and control for heaving, launching, and mooring operations.
Product Overview & Design Features
Our electric combined windlass systems are manufactured in compliance with ISO 4568-1986 standards, ensuring international quality and performance reliability. The versatile design accommodates various operational requirements through multiple configuration options:
-
Drive Options: Available in electric, hydraulic, manual, and diesel engine configurations
-
Structural Types:
-
Systematic double-chain anchor winch (Type A)
-
Single-chain anchor winch (Type B)
-
Anchor capstan (Type E)
-
Type Identification System
-
First letter: D-Electric, Y-Hydraulic, S-Manual, C-Diesel Engine
-
Second letter: M-Anchor Winch
-
Third letter: Configuration Type (A, B, E)
Technical Specifications & Performance Data
| Type | Anchor Chain Diameter (mm) | Working Load (kN) | Over Load (kN) | Loading Support (kN) | Nominal Speed (m/min) | Drum Load (kN) | Cable Capacity | Mooring Line Load (kN) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | ||||||
| DMA-46 | 46 | 89.9 | 100.5 | 139.4 | 150.8 | 526 | 756 | 9 | 60/75 | Φ24×200m | 50 |
| DMA-48 | 48 | 97.9 | 109.4 | 146.9 | 164.1 | 570 | 815 | 9 | 60/80 | Φ24×200m | 50 |
| DMA-50 | 50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 | 60/80 | Φ24×200m | 50 |
| DMA-52 | 52 | 114.9 | 128.4 | 172.4 | 192.6 | 666 | 950 | 9 | 80/100 | Φ28×200m | 60 |
| DMA-54 | 54 | 123.9 | 138.5 | 185.9 | 207.8 | 715 | 1021 | 9 | 80/100 | Φ28×200m | 60 |
| DMA-56 | 56 | 133.3 | 149.0 | 200.0 | 223.5 | 770 | 1094 | 9 | 80/100 | Φ28×220m | 60 |
| DMA-60 | 60 | 153.0 | 171.0 | 229.5 | 256.5 | 873 | 1247 | 9 | 100/120 | Φ30×220m | 80 |
| DMA-64 | 64 | 174.1 | 194.6 | 261.2 | 291.9 | 986 | 1409 | 9 | 100/120 | Φ30×240m | 80 |
| DMA-70 | 70 | 208.3 | 232.8 | 312.5 | 349.2 | 1161 | 1661 | 9 | 120/140 | Φ32×260m | 100 |
| DMA-76 | 76 | 245.5 | 274.4 | 368.3 | 411.6 | 1355 | 1935 | 9 | 135/150 | Φ34×280m | 125 |
| DMA-84 | 84 | 300.0 | 335.2 | 450.0 | 502.8 | 1625 | 2322 | 9 | 150/180 | Φ36×300m | 125 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
