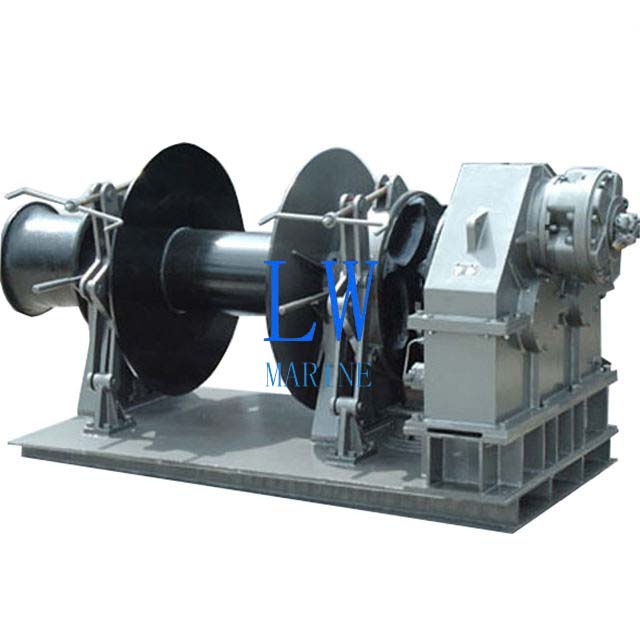

Hydraulic Combined Anchor Windlasses for Marine Applications
Our Hydraulic Combined Anchor Windlasses are premium marine equipment meticulously engineered for robust anchor handling operations on ships and vessels. These essential devices are designed to perform critical tasks such as lifting, lowering, and securely storing anchors, ensuring safe and efficient mooring and anchoring processes. Powered by a reliable hydraulic system, these windlasses excel in managing heavy-duty anchoring tasks with ease and precision.
The term “combined” in our Hydraulic Combined Anchor Windlasses highlights their dual-functionality. Each unit integrates a gypsy wheel for precise anchor chain handling and a warping drum for effective mooring rope or wire operations. This multifunctional design makes them indispensable for a wide range of marine applications, from small boats to large commercial vessels.
Key Features
- Gypsy Wheel: The gypsy wheel is equipped with specially grooved surfaces that provide a secure grip on the anchor chain, facilitating smooth deployment and retrieval. This feature ensures optimal control and maneuverability during anchor handling operations.
- Warping Drum: The warping drum offers additional functionality, enabling efficient ship mooring operations. It is designed to handle mooring ropes or wires with ease, enhancing the overall versatility of the windlass.
- Durable Construction: Constructed from high-grade fabricated steel with hardened gears that exceed working load requirements, our Hydraulic Combined Anchor Windlasses are built to withstand the harsh marine environment. They offer exceptional durability and corrosion resistance, ensuring long-term reliability.
- Enhanced Safety: Standard features include a clutched and braked drum system, which enhances operational safety by preventing unintended movement of the anchor chain or mooring rope.
- Customizable Options: Available in a range of sizes from 38mm to 58mm chain diameter, our hydraulic anchor windlasses cater to diverse marine requirements. Each model is designed to meet specific working load, speed, and mooring pull specifications.
Technical Specifications (38-58mm Hydraulic Combined Anchor Windlass)
Our hydraulic anchor windlasses are typically installed on the main deck of the ship’s forecastle for efficient anchoring and mooring operations. The comprehensive system includes a base, bracket, anchor sprocket, brake, gearbox, and an electric control system (for electric models). Electric models are equipped with an electric motor, while hydraulic models feature a hydraulic pumping station for power.
| Chain Dia. (mm) | Working Load (KN) | Working Speed (m/min) | Mooring Pull (KN) | Mooring Speed (m/min) | Drum Capacity (mm×m) | Motor Power (KW) | Dimensions (mm) (A×B×C×D) | Weight (ton) |
|---|---|---|---|---|---|---|---|---|
| 38 | 61 | 69 | 9 | 50 | 50×200 | 30 | 1000×255×1550×1600 | 5.8 |
| 40 | 68 | 76 | 9 | 50 | 50×200 | 30 | 1000×255×1550×1600 | 5.8 |
| 42 | 75 | 84 | 9 | 50 | 50×200 | 30 | 1000×255×1550×1600 | 5.8 |
| 44 | 82 | 92 | 9 | 60 | 50×200 | 30 | 1000×2700×1750×1700 | 6.5 |
| 46 | 90 | 101 | 9 | 60 | 50×200 | 45 | 1000×2700×1750×1750 | 6.5 |
| 48 | 98 | 109 | 9 | 60 | 50×200 | 45 | 1000×2800×1750×1750 | 6.8 |
| 50 | 106 | 119 | 9 | 60 | 50×200 | 45 | 1000×2800×1750×1750 | 6.8 |
| 52 | 115 | 128 | 9 | 80 | 60×200 | 45 | 1100×2900×1750×1750 | 8 |
| 54 | 124 | 139 | 9 | 80 | 60×200 | 45 | 1100×2900×1750×1750 | 8 |
| 56 | 133 | 149 | 9 | 80 | 60×200 | 55 | 1300×3300×2750×1850 | 10.5 |
| 58 | 143 | 160 | 9 | 80 | 60×200 | 55 | 1300×3300×2750×1850 | 10.5 |
Note: The description might be incorrect, please contact us for confirmation.
