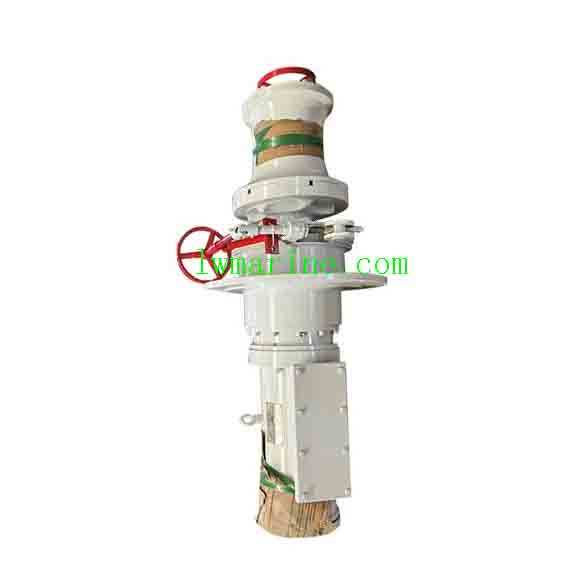

Electric Anchor Mooring Capstan
Introducing our premium Electric Anchor Mooring Capstan, a top-tier marine mooring device that strictly adheres to the construction and classification rules for sea-going ships (CCS) as well as those for Yangtze River vessels. Manufactured with precision by us in China, this series of anchor capstans is specifically designed for ships operating in inland rivers and coastal waters, offering exceptional performance and reliability in diverse marine environments.
One of the most notable features of this electric anchor mooring capstan is its compact deck footprint. This space-saving design makes it an excellent choice for vessels with limited deck space, allowing for efficient utilization of available area without compromising on mooring capabilities. Despite its small size, it delivers powerful and consistent mooring performance, ensuring secure anchoring even in challenging conditions.
Our electric anchor mooring capstan is engineered to meet the rigorous demands of the marine industry, providing a versatile and efficient solution for various mooring applications. Whether you’re navigating through inland waterways or coastal regions, this capstan is built to withstand the rigors of marine environments, offering long-lasting durability and consistent operation.
Key Features:
- CCS-Compliant Design: Strictly follows the highest construction and classification standards for sea-going ships, ensuring safety and reliability in all marine operations.
- Compact Deck Footprint: Ideal for ships with limited deck space, optimizing area utilization without sacrificing mooring performance.
- Versatile Application: Suitable for both inland river and coastal water operations, providing flexibility and adaptability in various marine settings.
- High-Quality Construction: A reputable name in the marine equipment industry, ensuring durability, longevity, and consistent performance.
- Powerful Electric Motor: Equipped with a robust electric motor, delivering reliable and efficient mooring power for secure anchoring.
Main Technical Specifications:
| Chain Dia.(mm) | Working Load(kN) | Working Speed(m/min) | Warping Load(kN) | Warping Speed(m/min) | Wire Dia.(mm) | Motor Power(kW) |
|---|---|---|---|---|---|---|
| 11/14 | 5.9/7.4 | ≥12 | 5 | ≥10 | Ф11 | 3/1.2 |
| 16/17.5 | 10.9/13.0 | ≥12 | 8 | ≥10 | Ф13 | 4.3/1.7 |
| 19/22 | 15.3/20.6 | ≥12 | 10 | ≥10 | Ф13 | 6/2.5 |
| 24/26 | 24.5/28.7 | ≥9 | 20 | ≥8.5 | Ф15 | 7.5/7.5/5 |
| 28/30 | 33.3/38.3 | ≥9 | 30 | ≥8.5 | Ф17.5 | 16/16/11 |
| 32/34/36 | 43.5/49.1/55.1 | ≥9 | 30 | ≥8.5 | Ф17.5 | 16/16/11 |
| 38/40/42 | 61.4/68.0/75.0 | ≥9 | 50 | ≥8.5 | Ф20.5 | 22/22/16 |
| 44/46/48 | 82.3/89.9/97.9 | ≥9 | 50 | ≥8 | Ф26 | 30/30/22 |
| 50/52/54 | 106.3/114.9/123.9 | ≥9 | 60 | ≥8 | Ф26 | 30/30/22 |
| 56/58/60 | 133.3/143.0/153.0 | ≥9 | 60 | ≥8 | Ф26 | 45/45/30 |
FAQs
Q1: Is this electric anchor mooring capstan suitable for both inland river and coastal water operations?
A1: Absolutely. Our electric anchor mooring capstan is designed to be versatile and can be effectively used in both inland river and coastal water environments, providing reliable mooring solutions for various marine applications.
Q2: Does this capstan comply with any industry standards?
A2: Yes, this series of anchor capstans strictly complies with the construction and classification rules for sea-going ships (CCS), ensuring it meets the highest safety and reliability standards in the marine industry.
Q3: What are the advantages of having a compact deck footprint for an anchor mooring capstan?
A3: A compact deck footprint allows for more efficient use of space on the ship, making it ideal for vessels with limited deck area. It enables you to install the mooring capstan without sacrificing valuable deck space for other essential equipment, enhancing overall vessel functionality and operational efficiency.
Q4: Can this electric anchor mooring capstan handle different chain and wire diameters?
A4: Yes, our electric anchor mooring capstan is designed to accommodate a range of chain and wire diameters, as specified in the technical specifications table. This flexibility ensures that you can select the appropriate chain and wire diameter for your specific mooring requirements, providing optimal performance and safety.
Please Note: The description might be incorrect, please contact us for confirmation.
