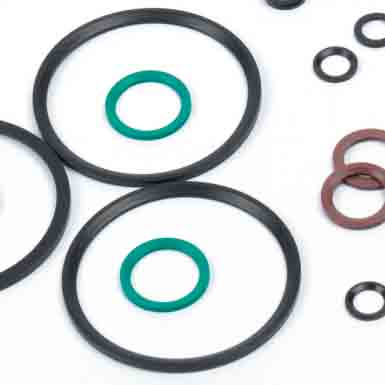

ED Ring
| Size | Inch | Thread | ID | OD | Thickness T | Thickness T1 | Part No. |
|---|---|---|---|---|---|---|---|
| 8 | — | M8*1.0 | 6.5 | 9.9 | 1.0 | 0.5 | DRV100084 |
| 10 | G1/8A | M10*1.0 | 8.4 | 11.9 | 1.0 | 0.5 | DRV100084 |
| 12 | — | M12*1.5 | 9.8 | 14.4 | 1.5 | 0.8 | DRV100098 |
| 14 | G1/4A | M14*1.5 | 11.6 | 16.5 | 1.5 | 0.8 | DRV100116 |
| 16 | — | M16*1.5 | 13.8 | 18.9 | 1.5 | 0.8 | DRV100138 |
| 17 | G3/8A | G3/8*19 | 14.7 | 18.9 | 1.5 | 0.8 | DRV100147 |
| 18 | — | M18*1.5 | 15.7 | 20.9 | 1.5 | 0.8 | DRV100157 |
| 20 | — | M20*1.5 | 17.8 | 22.9 | 1.5 | 0.8 | DRV100178 |
| 21 | G1/2A | G1/2*14 | 18.5 | 23.9 | 1.5 | 0.8 | DRV100185 |
| 22 | — | M22*1.5 | 19.6 | 24.3 | 1.5 | 0.8 | DRV100196 |
| 24 | 5/8 | M24*1.5 | 21.8 | 26.9 | 1.5 | 0.8 | — |
| 26 | G3/4A | M26*1.5 | 23.9 | 29.2 | 1.5 | 0.8 | DRV100239 |
| 27 | G3/4A | M27*2.0 | 23.9 | 29.2 | 1.5 | 0.8 | DRV100239 |
| 33 | G1A | M33*2.0 | 29.7 | 35.7 | 2.0 | 1.0 | DRV100297 |
| 42 | G1-1/4 | M42*2.0 | 38.8 | 45.8 | 2.0 | 1.0 | DRV100388 |
| 48 | G1-1/2 | M48*2.0 | 44.7 | 50.7 | 2.0 | 1.0 | DRV100447 |
| 60 | 2 | M60*2.0 | 56.5 | 66.5 | 4.0 | 2.0 | — |
Note: The description may be different with the product, please contact us for quotation.
