Double Bitts

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to contact us via whatsapp for details

Category:

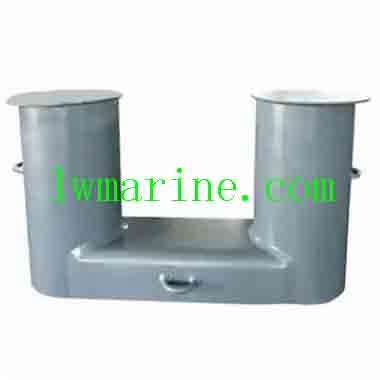

Double Bitts Bollard for Marine Dock Security and Ship Mooring

The marine dock inclined double bitts bollard stands out as a premier security dock bollard, specifically designed to excel in ship mooring and shifting operations. This type of double bitt bollard is a superior choice for ensuring the safe and secure anchoring of vessels at ports. Our range of marine bollards encompasses various types, each meticulously crafted to align with berth capacity and wharf structure requirements, including kidney bollards, staghorn bollards, T-head bollards, J-type bollards, R-type bollards, single bitt bollards, and double bitt bollards. As a professional bollard supplier, we offer both nominal standard marine bollards and customized bollards tailored to meet specific customer needs. Our commitment to quality is unwavering, ensuring prompt delivery and competitive pricing for all our products. If you’re in search of reliable marine mooring solutions, please feel free to reach out to us.

Key Features of Double Bitts Bollard:

  1. Double Pillar Structure: Provides enhanced stability and strength for secure ship mooring.
  2. Strong and Durable Design: Built to withstand harsh marine environments and heavy loads.
  3. Bollard Capacity: Ranges from 20 to 200 tonnes, catering to various vessel sizes and mooring requirements.
  4. Bolts Quantity: Equipped with 8 to 10 bolts for secure installation and stability.
  5. Material Options: Available in cast iron, cast steel, and cast SG iron for optimal performance.
  6. Surface Finish: Polished and galvanized for superior corrosion resistance and longevity.
  7. Color Variations: Comes in red, black, grey, and other colors to match your dock aesthetics.
  8. Warranty: Backed by a 1-year guarantee for peace of mind.
  9. Certifications: Approved by CCS, ABS, GL, NK, and other reputable organizations, ensuring compliance with international standards.
  10. Customization Available: Can be tailored to meet specific customer requirements and design specifications.

Specification Table for Double Bitts Bollard (Unit: mm):

Capacity (T) Type A B C D E F G H Bolts No.
20 DBA20 685 370 610 150 254 50 369 394 8
30 DBA30 825 420 725 180 290 58 445 451 8
50 DBA50 945 455 825 200 330 65 510 508 8
75 DBA75 1205 522 1040 255 405 75 650 622 10
100 DBA100 1390 635 1200 305 457 82 760 698 10
125 DBA125 1525 675 1320 330 500 85 840 752 10
150 DBA150 1650 720 1420 355 533 90 910 797 10
175 DBA175 1875 840 1650 406 610 105 1067 909 10
200 DBA200 2030 860 1750 432 660 115 1130 987 10

FAQs:

  1. Q: What is the primary purpose of a double bitt bollards?
    A: The primary purpose of a double bitt bollard is to provide a secure anchoring point for ships during mooring and shifting operations at ports.
  2. Q: How do I determine the appropriate capacity of a double bitt bollard for my vessel?
    A: The capacity of the double bitt bollard should be chosen based on the size and weight of your vessel, as well as the expected mooring conditions. Our team can provide expert advice to help you select the right bollard.
  3. Q: Can the double bitt bollard be customized to match specific dock aesthetics?
    A: Yes, our double bitt bollards can be customized in terms of color and other design aspects to match your dock’s aesthetics and requirements.
  4. Q: What certifications do your double bitt bollards have?
    A: Our double bitt bollards are approved by reputable organizations such as CCS, ABS, GL, NK, ensuring compliance with international standards and quality assurance.
  5. Q: How long is the warranty period for your double bitt bollards?
    A: Our double bitt bollards come with a 1-year warranty, providing you with peace of mind and assurance of their quality and durability.

Please Note: The description might be incorrect, please contact us for confirmation.
