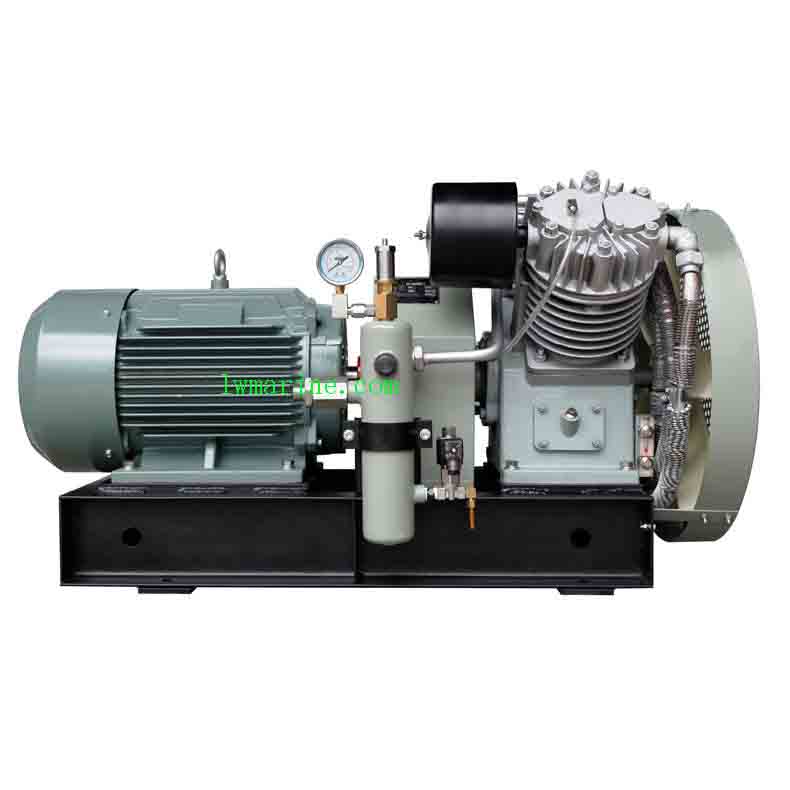

Direct Drive Marine Air Compressors
Premium Direct-Coupled Compressors for Superior Performance
Our direct type air compressors deliver maximum energy efficiency through innovative direct-drive technology. These marine-grade compressors feature motor-to-compressor direct coupling, eliminating power transmission losses for optimal performance in demanding shipboard applications.
Key Advantages & Benefits:
✔ Unmatched Efficiency: Direct shaft coupling reduces energy losses by up to 15%
✔ High-Pressure Performance: 6.0-25.0 MPa output for critical marine systems
✔ Compact Design: Space-saving footprint ideal for engine room installations
✔ Reliable Operation: Fewer moving parts minimize maintenance requirements
✔ Precision Engineering: Balanced rotary assembly ensures smooth, vibration-free operation
Technical Specifications
Performance Data Table:
| Model | Pressure (MPa) | Stages | RPM | Capacity (m³/h) | Power (kW) | Cooling | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| HS104-AC101 | 6.0 | 2 | 500 | 26 | 11 | Water Cooled | 1170×700×1220 |
| HS104-AC102 | 15.0 | 3 | 730 | 30 | 11 | Water Cooled | – |
| HS104-AC103 | 15.0 | 4 | 900 | 100 | 45 | Water Cooled | 1800×850×1540 |
| HS104-AC105 | 25.0 | 4 | 970 | 84 | 45 | Water Cooled | – |
The description/sizes may be different with goods, please check with us when order.
