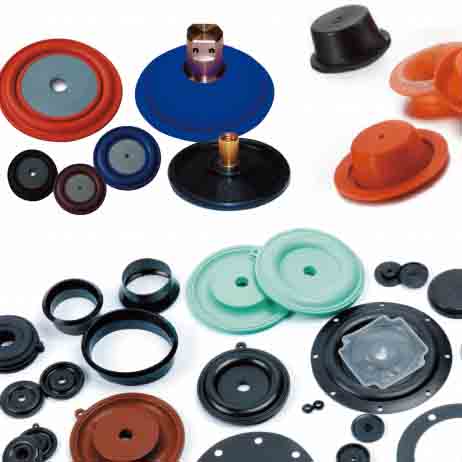

Diaphragm

Diaphragm

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Diaphragm

1. Diaphragm function

Diaphragm is generally called separation film, requires a pressure control, sealing role.
(1) control the role of pressure: The pressure into action, the action into pressure;
(2) Diaphragm effect: The effect of separating the different media;
(3) The pump: So that the inhalation, the discharge of liquid, the gas does not enter the internal structure, the seal side of the role.

2. RINGV Diaphragm classification

There are pure rubber diaphragm, cloth cotton diaphragm, fabric reinforced diaphragm, PTFE diaphragm and so on.
Including: flat diaphragm, leather diaphragm, cloth diaphragm, diaphragm, diaphragm, diaphragm, rubber diaphragm, diaphragm, instrument diaphragm, electrical equipment, instrument diaphragm, instrument diaphragm, regulator diaphragm, rolling diaphragm, rotary diaphragm, diaphragm, diaphragm, etc.

3. RINGV Diaphragm specification

  1. pure rubber diaphragm thickness of more than 0.2MM can be customized;

  2. fabric reinforced rubber diaphragm thickness 0.35MM above can be customized;

  3. other types may be based on drawings or specific requirements;

  4. Dimension can be maintained within a specific range according to customer requirements.

4. Diaphragm material

  1. Rubber material: NBR, EPDM, HNBR, CO, VMQ Silicone, FKM, FVMQ etc;
    hardness: 40 to 80 Shore A

  2. Fabric material: aramid cloth, polyester fabric, nylon, carbon fiber fabric, glass fiber and so on.

5. RINGV Diaphragm characteristics

  1. long service life;

  2. products work fine;

  3. imported raw materials, the quality is more stable;

  4. No lubrication required;

  5. can adapt to harsh environments;

  6. good sealing, no leakage;

  7. wear resistance;

  8. versatility;

  9. cost-effective.

6. Application areas

Automotive industry, washing machine industry, pneumatic components, gas equipment, electronics industry, electrical equipment, pneumatic equipment, pumps and valves equipment, water treatment equipment.

Note: The description may be different with the product, please contact us for quotation.
