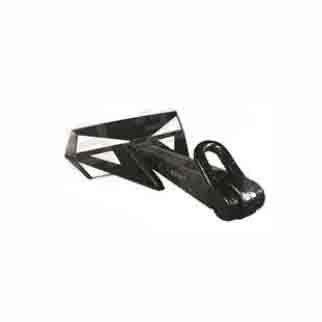

Delta HHP Anchor
Delta HHP Anchor
| Nominal weight(kg) | Size (mm) | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| 100 | 781 | 869 | 693 | 329 | 999 | 66 |
| 150 | 893 | 993 | 793 | 377 | 1142 | 75 |
| 200 | 985 | 1096 | 875 | 416 | 1260 | 83 |
| 250 | 1061 | 1180 | 942 | 448 | 1357 | 90 |
| 300 | 1127 | 1254 | 1000 | 475 | 1442 | 95 |
| 350 | 1186 | 1320 | 1053 | 500 | 1517 | 100 |
| 400 | 1239 | 1378 | 1100 | 523 | 1585 | 105 |
| 450 | 1288 | 1433 | 1144 | 543 | 1648 | 109 |
| 500 | 1334 | 1485 | 1185 | 563 | 1707 | 113 |
| 550 | 1377 | 1532 | 1223 | 581 | 1762 | 116 |
| 600 | 1320 | 1580 | 1261 | 599 | 1817 | 120 |
| 650 | 1456 | 1620 | 1293 | 614 | 1863 | 123 |
| 700 | 1496 | 1664 | 1328 | 631 | 1914 | 126 |
| 750 | 1529 | 1701 | 1357 | 645 | 1956 | 129 |
| 800 | 1562 | 1738 | 1386 | 659 | 1998 | 132 |
| 850 | 1595 | 1774 | 1416 | 673 | 2040 | 135 |
| 900 | 1624 | 1807 | 1442 | 685 | 2078 | 137 |
| 1000 | 1684 | 1873 | 1495 | 710 | 2154 | 142 |
| 1500 | 1928 | 2145 | 1711 | 813 | 2466 | 163 |
| 2000 | 2122 | 2361 | 1884 | 895 | 2714 | 179 |
| 3000 | 2283 | 2541 | 2027 | 963 | 2921 | 193 |
| 3500 | 2428 | 2702 | 2156 | 1024 | 3106 | 205 |
| 4000 | 2557 | 2845 | 2270 | 1079 | 3271 | 216 |
| Nominal weight(kg) | Size (mm) | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| 4500 | 2778 | 3090 | 2466 | 1172 | 3553 | 234 |
| 5000 | 2877 | 3200 | 2554 | 1213 | 3680 | 243 |
| 5500 | 2972 | 3307 | 2638 | 1254 | 3802 | 251 |
| 6000 | 3058 | 3402 | 2714 | 1290 | 3912 | 258 |
| 6500 | 3140 | 3494 | 2788 | 1325 | 4017 | 265 |
| 7000 | 3219 | 3582 | 2858 | 1358 | 4118 | 272 |
| 7500 | 3295 | 3666 | 2925 | 1390 | 4215 | 278 |
| 8000 | 3367 | 3747 | 2989 | 1421 | 4308 | 284 |
| 8500 | 3437 | 3824 | 3051 | 1450 | 4396 | 290 |
| 9000 | 3503 | 3897 | 3109 | 1478 | 4481 | 296 |
| 9500 | 3565 | 3967 | 3165 | 1504 | 4561 | 301 |
| 10000 | 3628 | 4036 | 3220 | 1530 | 4641 | 306 |
| 11000 | 3743 | 4165 | 3323 | 1579 | 4788 | 316 |
| 12000 | 3855 | 4289 | 3422 | 1626 | 4932 | 325 |
| 13000 | 3954 | 4399 | 3510 | 1668 | 5058 | 334 |
| 14000 | 4056 | 4513 | 3601 | 1711 | 5189 | 342 |
| 15000 | 4152 | 4619 | 3686 | 1751 | 5311 | 350 |
| 16000 | 4241 | 4718 | 3764 | 1789 | 5425 | 358 |
| 17000 | 4326 | 4813 | 3841 | 1825 | 5534 | 365 |
| 18000 | 4412 | 4909 | 3917 | 1861 | 5644 | 372 |
| 19000 | 4491 | 4997 | 3987 | 1895 | 5745 | 379 |
| 20000 | 4570 | 5085 | 4057 | 1928 | 5846 | 386 |
Note: The description may be different with the product, please contact us for quotation.
