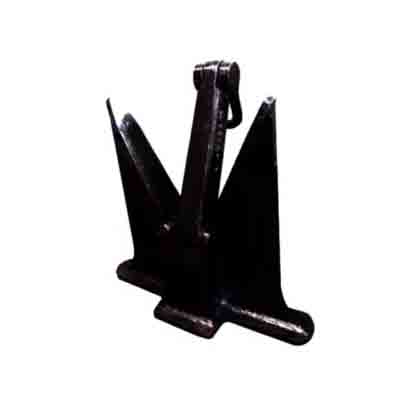

D hone Anchor

D hone Anchor

Certificate: CCS, GL and BV certificate.
Delivery Time: 15days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

D Hone High Holding Power (HHP) Anchor

Product Overview:
The D Hone Anchor represents a premium class of stockless High Holding Power (HHP) anchors, engineered to deliver superior performance with 25% weight reduction compared to conventional anchors. Meticulously handcrafted at our specialized facility in China, this fully balanced anchor combines advanced marine engineering with artisanal manufacturing precision, making it particularly effective for vessel pockets and other space-constrained applications.

Key Features & Benefits:

Advanced HHP Technology:

  • Certified 25% weight reduction without compromising holding power

  • Precision-balanced design for optimal seabed penetration

  • Space-efficient profile ideal for pocket storage

  • Hand-finished construction ensuring quality consistency

Technical Specifications:

  • Type: D-Hone Stockless HHP Anchor

  • Material: High-tensile Q345C marine steel plate

  • Weight Range: 200kg – 15,500kg (custom sizes available)

  • Surface Treatment:
    • Standard: Heavy-duty bitumen coating
    • Premium: Custom anti-corrosion solutions

  • Certifications: Available upon request (ABS, LR, DNV, etc.)

Parameters:

Size(mm) Nominal Weight Proof Test
E F G H A B C D (kg) (KN)
847 313 110 145 789 495 566 182 200 61
968 358 136 175 900 566 648 207 300 80
1065 395 151 192 994 624 710 231 400 98
1150 425 163 215 1070 670 765 250 500 116
1185 438 163 215 1105 693 790 257 550 125
1220 452 163 215 1138 714 815 263 600 132
1255 465 174 235 1170 733 835 275 650 140
1285 475 174 235 1200 750 860 275 700 149
1310 485 174 235 1225 765 875 275 750 158
1340 495 174 235 1253 780 895 281 800 166
1370 507 200 255 1280 800 915 295 850 175
1386 513 200 255 1300 810 927 297 900 182
1425 527 200 255 1327 830 950 308 950 191
1450 536 200 255 1350 840 965 315 1000 199
1490 555 215 280 1394 875 1000 320 1100 216
1540 570 215 280 1435 900 1030 330 1200 231
1580 585 215 280 1475 925 1055 341 1300 247
1620 600 215 280 1510 945 1080 350 1400 262
1660 610 215 280 1545 970 1100 365 1500 278
1690 627 236 310 1578 990 1130 366 1600 292
1725 638 236 310 1608 1008 1150 373 1700 307
1760 650 236 310 1640 1030 1175 380 1800 321
1790 660 236 310 1670 1050 1190 390 1900 335
1825 675 236 310 1700 1065 1220 390 2000 349
1880 695 256 340 1750 1100 1250 410 2200 376
1940 717 256 340 1800 1130 1290 420 2400 401
1990 737 279 380 1855 1160 1330 420 2600 427
2040 755 279 380 1900 1190 1365 435 2800 450
2090 770 279 380 1950 1220 1400 445 3000 474
2140 790 284 385 2000 1250 1430 460 3250 506
2200 810 284 385 2050 1285 1470 470 3500 528
2280 850 305 410 2132 1340 1530 490 4000 577
2385 880 310 410 2224 1395 1590 510 4500 622
2505 927 343 450 2335 1460 1670 540 5000 661
2520 930 343 450 2350 1470 1680 540 5300 685
2610 965 343 450 2430 1525 1745 560 5800 721
2665 986 370 480 2484 1555 1780 575 6000 735
2710 1002 370 480 2520 1580 1810 580 6500 767
2755 1020 370 480 2580 1610 1840 595 7000 804
2825 1045 377 500 2635 1650 1890 605 7400 832
2880 1065 391 540 2686 1685 1930 615 8000 877
2926 1085 391 540 2736 1710 1950 635 8300 900
2990 1105 391 540 2785 1745 1995 643 8800 936
3030 1120 418 580 2830 1775 2030 650 9200 961
3080 1140 418 580 2877 1800 2060 660 9600 987
3126 1157 437 600 2920 1830 2090 670 10000 1010
3180 1180 437 600 2964 1860 2125 685 10500 1040
3320 1230 452 630 3100 1940 2220 715 12000 1110
3435 1270 468 640 3200 2010 2290 740 13500 1180
3495 1294 483 660 3260 2045 2330 760 14000 1210
3600 1330 498 680 3360 2100 2410 770 15500 1270

The description/sizes may be different with goods, please check with us when order.
