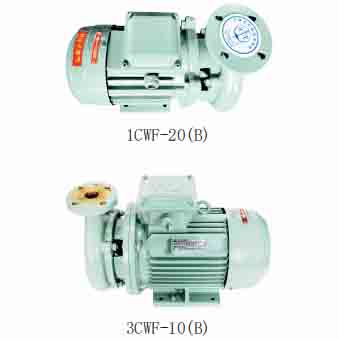

CWF SERIES MARINE SEWAGE CUTTING PUMP
General Description
The CWF series Marine Cutting Pump is an open impeller centrifugal discharge pump designed for crushing and conveying soft waste in domestic sewage at temperatures below 85° C. After cyclic crushing, the maximum solid particle diameter does not exceed 5mm. It is also suitable for crushing low-temperature condensed residual oil in marine applications to facilitate injection.
Example: 3CWF-10 (B).
Model Code Interpretation:
-
3: Inlet Pipe Diameter: 3 inches
-
C: Cutting Pump
-
W: Marine Sewage
-
F: Flange Type
-
-10: Rated Flow: 10m³/h
-
(B): Structure
-
(The diagram also indicates Rated Pressure: 0.1 MPa)
Main Technical Performance Parameter
| Model | Flow (m³/h) | Head (m) | Motor Power (KW) | Export Pipe Diameter (mm) | Import Pipe Diameter (mm) |
|---|---|---|---|---|---|
| 0.1CWF-5(B) | 1 | 5 | 0.18 | 25 | 40 |
| 0.5CWF-5(B) | 5 | 6 | 0.75 | 32 | 50 |
| 0.5CWF-10(B) | 5 | 10 | 1.1 | 32 | 50 |
| 0.5CWF-15(B) | 5 | 15 | 1.1 | 32 | 50 |
| 0.5CWF-30(B) | 5 | 30 | 3 | 32 | 50 |
| 1CWF-1(B) | 10 | 11 | 1.5 | 32 | 65 |
| 1CWF-20(B) | 10 | 20 | 3 | 40 | 65 |
| 1CWF-30(B) | 10 | 30 | 4 | 40 | 65 |
| 2CWF-1(B) | 20 | 11 | 2.2 | 40 | 65 |
| 2CWF-20(B) | 20 | 20 | 4 | 50 | 65 |
| 2CWF-30(B) | 20 | 30 | 7.5 | 50 | 65 |
| 3CWF-10 | 30 | 10 | 4 | 50 | 80 |
| 32CWF-5-40(B) | 5 | 40 | 4 | 32 | 50 |
| 40CWF-5-50(B) | 5 | 50 | 5.5 | 40 | 50 |
| 40CWF-10-50(B) | 10 | 50 | 11 | 40 | 50 |
Note: The description may be different with the product, please contact us for quotation.
