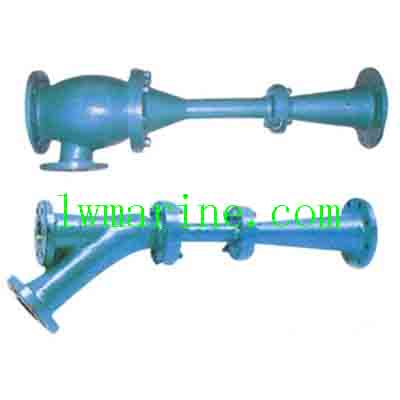

CPJ Series Marine Ejector Pumps
The CPJ Series Marine Ejector Pump delivers exceptional performance in handling complex multi-phase media through advanced jet pump technology. Certified by CCS (China Classification Society), this robust linear ship jetting water pump efficiently conveys liquid-gas mixtures, powdered materials, and operates effectively in vacuum working atmospheres while providing deodorizing capabilities. Its innovative ejector design makes it ideal for challenging marine applications where conventional pumps fail.
Model Identification: CPJ40-50-65
-
CP: Marine Ejector Pump
-
J: Jet Inlet Configuration
-
40: Working Water Inlet Diameter (40 mm)
-
50: Suction Port Diameter (50 mm)
-
65: Discharge Port Diameter (65 mm)
Technical Specifications
-
Flow Capacity: 0–600 m³/h
-
Discharge Pressure: 5–30 m
-
Inlet Head: 1–9 m
-
Working Pressure: 0.1–1.4 MPa
-
Working Water Requirement: 5–2000 m³/h
-
Certification: CCS (China Classification Society) Approved
-
Construction: Marine-grade corrosion-resistant materials
Performance Data Highlights
| Model | Capacity (m³/h) | Working Water (m³/h) | Discharge Pressure (m) | Weight (kg) |
|---|---|---|---|---|
| CPJ40-50-65 | 0–15 | 5–15 | 5–30 | 16 |
| CPJ80-100-100 | 0–70 | 40–80 | 5–30 | 40 |
| CPJ100-150-150 | 0–125 | 90–150 | 5–30 | 75 |
| CPJ150-200-250 | 0–420 | 250–500 | 5–30 | 180 |
| CPJ300-300-350 | 0–600 | 900–2000 | 5–30 | 370 |
Key Features & Benefits
-
Multi-Phase Handling: Efficiently conveys liquids, gas mixtures, and powdered materials
-
Vacuum Operation: Suitable for vacuum working atmospheres and deodorizing applications
-
CCS Certified: Meets international marine classification society standards
-
No Moving Parts: Maintenance-free operation with exceptional reliability
-
Corrosion-Resistant: Marine-grade construction for saltwater environments
-
Wide Pressure Range: Operates from 0.1 to 1.4 MPa working pressure
-
Flexible Configuration: Multiple size options for various flow requirements
-
Energy Efficient: Optimized jet design for reduced energy consumption
Applications
-
🚢 Marine tank cleaning and stripping operations
-
⛽ Fuel and ballast water handling
-
🌫️ Vacuum distillation and deodorizing systems
-
🏭 Powder and granular material transfer
-
💨 Gas-liquid mixture handling
-
🛳️ Bilge and sludge ejection
-
🧹 Tank cleaning and stripping operations
-
🌊 Seawater and wastewater management
Note: The description might be incorrect, please contact us for confirmation.
