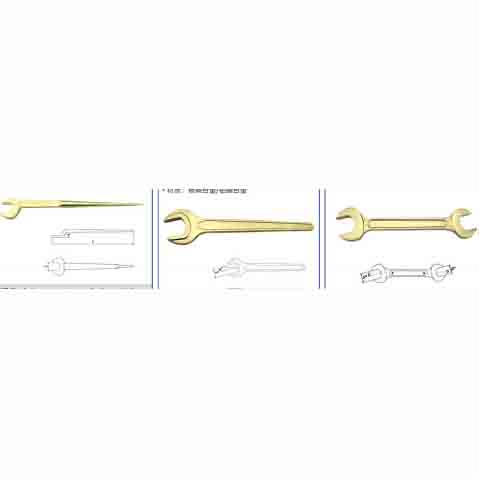

Construction Offset Wrench With Pin

Features: This product features a pin on the side. It is designed for convenience and is used as a bar. Material: Beryllium Copper/Aluminum Bronze.

Number	S(mm)	L(mm)	Weight(g)	Be-Cu	Al-Cu
1037-17	17	230	240	✓	✓
1037-19	19	250	260	✓	✓
1037-22	22	270	290	✓	✓
1037-24	24	280	300	✓	✓
1037-27	27	300	320	✓	✓
1037-30	30	320	350	✓	✓
1037-32	32	330	360	✓	✓
1037-36	36	350	420	✓	✓
1037-41	41	380	480	✓	✓
1037-46	46	410	520	✓	✓
1037-50	50	430	580	✓	✓
1037-55	55	510	680	✓	✓
1037-60	60	540	850	✓	✓

1038 Non-Spark Single Open End Wrench

Material: Beryllium Copper/Aluminum Bronze.

Number	S(mm)	L(mm)	Weight(g)	Be-Cu	Al-Cu
1038-8	8	80	70	✓	✓
1038-10	10	100	80	✓	✓
1038-12	12	110	85	✓	✓
1038-14	14	120	90	✓	✓
1038-15	15	140	100	✓	✓
1038-16	16	150	110	✓	✓
1038-17	17	160	120	✓	✓
1038-19	19	170	150	✓	✓
1038-22	22	180	180	✓	✓
1038-24	24	190	230	✓	✓
1038-27	27	210	290	✓	✓
1038-30	30	230	360	✓	✓
1038-32	32	250	440	✓	✓
1038-36	36	280	560	✓	✓
1038-38	38	300	630	✓	✓
1038-41	41	320	730	✓	✓
1038-46	46	350	860	✓	✓
1038-50	50	370	1,060	✓	✓
1038-55	55	400	1,250	✓	✓
1038-60	60	430	1,450	✓	✓
1038-65	65	460	1,800	✓	✓
1038-70	70	490	2,050	✓	✓
1038-75	75	520	2,400	✓	✓

1039 Non-Spark Open End Wrench

Note: This series is a DIN standard product. It is typically used for loosening and tightening bolts and nuts. This series is manufactured to the DIN standard. High strength. Material: Beryllium Copper/Aluminum Bronze.

Number	S(mm)	L(mm)	Weight(g)	Be-Cu	Al-Cu
1039-17	17	160	110	✓	✓
1039-19	19	170	130	✓	✓
1039-22	22	190	150	✓	✓
1039-24	24	200	180	✓	✓
1039-27	27	220	210	✓	✓
1039-30	30	260	240	✓	✓
1039-32	32	280	270	✓	✓
1039-34	34	300	280	✓	✓
1039-36	36	320	310	✓	✓
1039-41	41	350	390	✓	✓
1039-46	46	380	490	✓	✓
1039-50	50	410	590	✓	✓
1039-55	55	460	760	✓	✓
1039-60	60	480	930	✓	✓
1039-65	65	500	1,150	✓	✓
1039-70	70	540	1,350	✓	✓
1039-75	75	570	1,550	✓	✓

1040 Non-Spark Offset Open End Wrench

Features: Suitable for use in confined spaces and areas with protruding objects. Material: Beryllium Copper/Aluminum Bronze.

Number	S(mm)	L(mm)	Weight(g)	Be-Cu	Al-Cu
1040-19	19	170	180	✓	✓
1040-22	22	180	220	✓	✓
1040-24	24	200	240	✓	✓
1040-27	27	230	300	✓	✓
1040-30	30	260	350	✓	✓
1040-32	32	280	420	✓	✓
1040-34	34	300	460	✓	✓
1040-36	36	320	490	✓	✓
1040-41	41	350	590	✓	✓
1040-46	46	380	750	✓	✓
1040-50	50	410	940	✓	✓
1040-55	55	460	1,160	✓	✓
1040-60	60	500	1,500	✓	✓
1040-65	65	540	1,750	✓	✓
1040-70	70	580	2,100	✓	✓

1041 Non-Spark Double Open End Wrench

Features: Used for tightening and loosening hexagon head bolts and nuts. Material: Beryllium Copper/Aluminum Bronze.

Number	S(mm)	L(mm)	Weight(g)	Be-Cu	Al-Cu
1041-0607	6×7	92	40	✓	✓
1041-0810	8×10	105	55	✓	✓
1041-1012	10×12	120	65	✓	✓
1041-1214	12×14	130	75	✓	✓
1041-1415	14×15	145	85	✓	✓
1041-1417	14×17	150	90	✓	✓
1041-1618	16×18	170	115	✓	✓
1041-1719	17×19	180	140	✓	✓
1041-1922	19×22	200	160	✓	✓
1041-2224	22×24	220	180	✓	✓
1041-2427	24×27	250	210	✓	✓
1041-2730	27×30	280	250	✓	✓
1041-3032	30×32	320	310	✓	✓
1041-3236	32×36	350	380	✓	✓
1041-3441	34×36	370	490	✓	✓
1041-3841	38×41	400	530	✓	✓
1041-4146	41×46	420	670	✓	✓
1041-4650	46×50	460	790	✓	✓
1041-5055	50×55	520	900	✓	✓
1041-5560	55×60	580	1,200	✓	✓
1041-6065	60×65	630	1,350	✓	✓

Double Box Offset Wrench Set

(Image shows a complete set of double offset wrenches in a pouch.) Material: Beryllium Copper/Aluminum Bronze.

Size Set No.	Specification	Weight (g)
1043/6#	8×10, 10×12, 12×14, 14×17, 17×19, 19×22, 22×24	500
1045/11#	8×10, 10×12, 12×14, 14×17, 17×19, 19×22, 22×24, 24×27, 27×30, 30×32, 32×36	1,560
1047/13#	8×10, 10×12, 12×14, 14×17, 17×19, 19×22, 22×24, 24×27, 27×30, 30×32, 32×36, 34×36, 38×41	2,130
1047/15#	8×10, 10×12, 12×14, 14×17, 17×19, 19×22, 22×24, 24×27, 27×30, 30×32, 32×36, 34×36, 38×41, 41×46, 46×50	2,980

1048 Non-Spark Double Open End Wrench

Features: Used for tightening and loosening hexagon head bolts and nuts. Material: Beryllium Copper/Aluminum Bronze.

Number	S(mm)	L(mm)	Weight(g)	Be-Cu	Al-Cu
1048-0607	6×7	92	35	✓	✓
1048-0810	8×10	100	50	✓	✓
1048-1012	10×12	120	60	✓	✓
1048-1214	12×14	130	70	✓	✓
1048-1415	14×15	140	80	✓	✓
1048-1417	14×17	150	90	✓	✓
1048-1618	16×18	170	105	✓	✓
1048-1719	17×19	180	120	✓	✓
1048-1922	19×22	200	150	✓	✓
1048-2224	22×24	220	180	✓	✓
1048-2427	24×27	240	210	✓	✓
1048-2730	27×30	280	240	✓	✓
1048-3032	30×32	310	290	✓	✓
1048-3236	32×36	350	380	✓	✓
1048-3441	34×36	370	490	✓	✓
1048-3841	38×41	400	530	✓	✓
1048-4146	41×46	430	650	✓	✓
1048-4650	46×50	460	770	✓	✓
1048-5055	50×55	480	950	✓	✓
1048-5560	55×60	560	1,200	✓	✓

1049 Non-Spark Offset Open End Wrench (DIN Standard)

Material: Beryllium Copper/Aluminum Bronze.

Number	S(mm)	L(mm)	Weight(g)	Be-Cu	Al-Cu
1049-7	7	100	30	✓	✓
1049-8	8	105	30	✓	✓
1049-9	9	110	35	✓	✓
1049-10	10	115	40	✓	✓
1049-11	11	120	45	✓	✓
1049-12	12	125	50	✓	✓
1049-13	13	130	55	✓	✓
1049-14	14	135	60	✓	✓
1049-15	15	140	65	✓	✓
1049-16	16	150	70	✓	✓
1049-17	17	160	75	✓	✓
1049-18	18	170	85	✓	✓
1049-19	19	180	95	✓	✓
1049-20	20	190	105	✓	✓
1049-21	21	195	115	✓	✓
1049-22	22	205	125	✓	✓
1049-23	23	215	135	✓	✓
1049-24	24	225	145	✓	✓
1049-25	25	235	155	✓	✓
1049-26	26	240	170	✓	✓
1049-27	27	260	195	✓	✓
1049-28	28	270	210	✓	✓
1049-29	29	280	225	✓	✓
1049-30	30	290	240	✓	✓
1049-31	31	300	260	✓	✓
1049-32	32	310	280	✓	✓
1049-34	34	350	310	✓	✓
1049-36	36	380	330	✓	✓
1049-38	38	400	350	✓	✓
1049-41	41	430	390	✓	✓
1049-46	46	460	460	✓	✓
1049-50	50	490	560	✓	✓
1049-55	55	540	720	✓	✓
1049-60	60	580	860	✓	✓
1049-65	65	620	970	✓	✓
1049-70	70	660	1,050	✓	✓
1049-75	75	700	1,180	✓	✓

1050 Non-Spark Combination Wrench

Features: One end is a 15° offset ring wrench, the other end is an open end wrench. Material: Beryllium Copper/Aluminum Bronze.

Number	S(mm)	L(mm)	Weight(g)	Be-Cu	Al-Cu
1050-7	7	105	40	✓	✓
1050-8	8	115	50	✓	✓
1050-9	9	125	60	✓	✓
1050-10	10	135	70	✓	✓
1050-11	11	145	85	✓	✓
1050-12	12	160	95	✓	✓
1050-13	13	175	100	✓	✓
1050-14	14	185	110	✓	✓
1050-15	15	195	120	✓	✓
1050-16	16	210	130	✓	✓
1050-17	17	225	140	✓	✓
1050-18	18	235	150	✓	✓
1050-19	19	250	160	✓	✓
1050-20	20	265	170	✓	✓
1050-21	21	275	190	✓	✓
1050-22	22	285	210	✓	✓
1050-23	23	300	230	✓	✓
1050-24	24	315	250	✓	✓
1050-25	25	330	270	✓	✓
1050-26	26	345	290	✓	✓
1050-27	27	360	310	✓	✓
1050-28	28	370	330	✓	✓
1050-29	29	385	350	✓	✓
1050-30	30	400	370	✓	✓
1050-31	31	415	390	✓	✓
1050-32	32	425	410	✓	✓
1050-34	34	450	480	✓	✓
1050-36	36	470	540	✓	✓
1050-38	38	495	590	✓	✓
1050-41	41	520	680	✓	✓
1050-46	46	550	780	✓	✓
1050-50	50	600	900	✓	✓
1050-55	55	640	1,100	✓	✓
1050-60	60	680	1,250	✓	✓
1050-65	65	715	1,480	✓	✓
1050-70	70	760	1,680	✓	✓
1050-75	75	790	1,800	✓	✓
1050-80	80	840	2,100	✓	✓
1050-85	85	870	2,350	✓	✓
1050-90	90	920	2,650	✓	✓
1050-95	95	950	2,850	✓	✓
1050-100	100	980	3,250	✓	✓
1050-105	105	1,020	4,080	✓	✓

Note: The description may be different with the product, please contact us for quotation.
