A0.25-1.0 Vertical Compressed Air Vessel Tank | DNV/ABS/CCS Certified | 0.25m³ Capacity
Product Overview

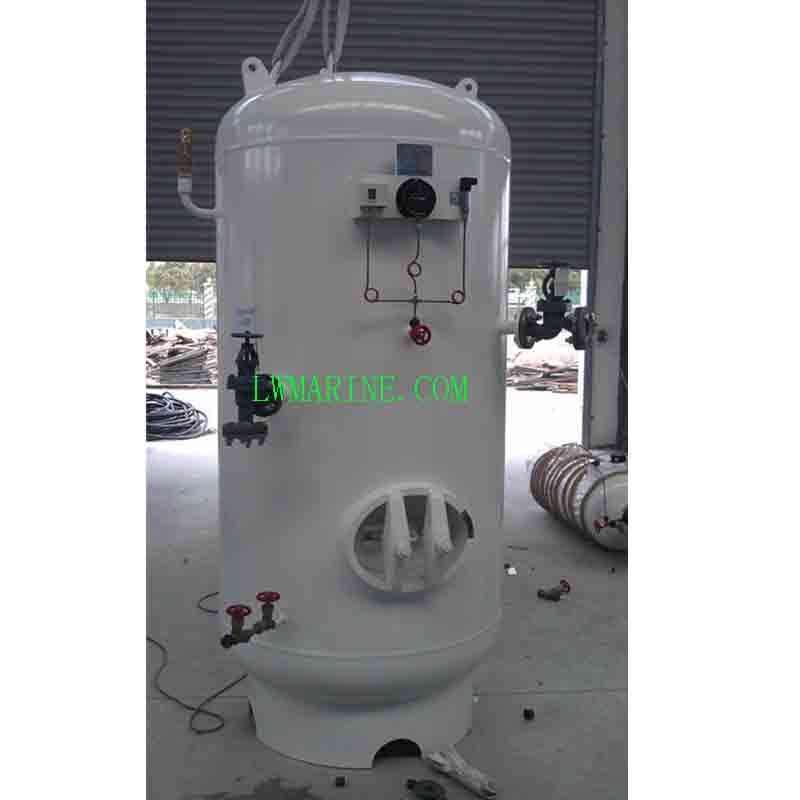

The A0.25-1.0 Vertical Marine Compressed Air Vessel Tank is a class-approved compressed air storage vessel specifically engineered for maritime applications. With a compact vertical design and 0.25m³ capacity, it delivers reliable performance in engine starting, control systems, and onboard pneumatic operations. Certified by major marine classification societies, it meets stringent safety and corrosion-resistance requirements for marine environments.
Key Features & Benefits
-
Classification Society Certified: Designed and manufactured in compliance with DNV, ABS, CCS, and other international marine standards
-
Marine-Grade Corrosion Protection: Features specialized coatings and materials to withstand saltwater exposure and humid conditions
-
Drinking Water Safety Approved: Utilizes food-grade natural rubber diaphragm for potable water system compatibility
-
Zero-Contamination Sealing: Hermetic seal design prevents air quality degradation and ensures pollution-free operation
-
Extended Service Life: Reinforced diaphragm rated for 200,000+ operational cycles with minimal maintenance requirements
-
Space-Optimized Vertical Design: Ideal for engine rooms and confined marine spaces with limited floor area
-
Comprehensive Safety Features: Includes pressure gauges, safety valves, and inspection ports for reliable operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | A0.25-1.0 |
| Capacity | 0.25 m³ |
| Design Pressure | 1.1 MPa |
| Working Pressure | 1.0 MPa |
| Design Temperature | 100°C |
| Internal Diameter | 500 mm |
| Height | 1660 mm |
| Weight | 177 kg |
| Operating Position | Vertical |
| Material Standard | Marine-grade steel |
Marine Applications
-
Main and auxiliary engine starting systems
-
Control air for valves and automation equipment
-
Deck machinery and pneumatic tool operations
-
Potable water system air supply
-
Emergency and service air circuits
Compliance & Certification
Manufactured in accordance with marine requirements and available with certification from major classification societies including DNV, ABS, BV, CCS, and RINA.
The description/sizes may be different with goods, please check with us when order.
