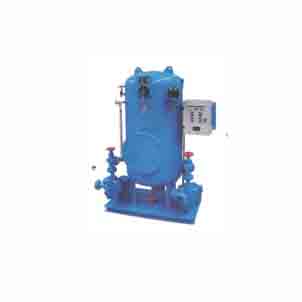

Combined Pressure Water Tank ZYG Series

Combined Pressure Water Tank ZYG Series

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Combined Pressure Water Tank ZYG Series

Model Instruction

  • ZYG-0.5: Volume 0.5m³, Combined pressure water tank
  • 3 × ZYG-0.3: Volume 0.3m³ × 3, Combined pressure water tank (3 groups: Sea water tank, fresh water tank, heating water tank by electric or steam)

Overview

This series combined pressure water tank is an integration of pressure water tank, water pump and valve pipe. It is the best water supply unit that is applicable to various types of seawater/fresh water and hot water piping water supply systems. They have the characteristics of modular unit, compact structure, beautiful shape and easy installation and maintenance.

Main Technical Parameters

表格
Model Volume (m³) Design Pressure (MPa) Working Pressure (MPa) Water Pump Model Motor Power (kW) Capacity (m³/h) Pressure (MPa)
ZYG-0.2 0.2 0.7 0.4 1.5CWX-2 2.2 3 0.4
ZYG-0.3 0.3 0.7 0.4 1.5CWX-2 2.2 3 0.4
ZYG-0.5 0.5 0.7 0.4 1.5CWX-2 2.2 3 0.4
ZYG-1.0 1.0 0.7 0.4 1.5CWX-2 2.2 3 0.4
ZYG-1.5 1.5 0.7 0.4 1.5CWX-2 2.2 3 0.4
ZYG-2.0 2.0 0.7 0.4 1.5CWX-2 2.2 3 0.4
ZYG-2.5 2.5 0.7 0.4 1.5CWX-2 2.2 3 0.4
3×ZYG-0.3 0.3×3 0.7 0.4 1.5CWX-2 2.2 3 0.4
3×ZYG-0.5 0.5×3 0.7 0.4 1.5CWX-2 2.2 3 0.4

Basic Dimensions

表格
Model DN Overall size (mm) Base size (mm) Water inlet DN Water outlet DN Draining outlet DN
L B H a b
ZYG-0.2 500 1130 745 1635 1040 600 40 25 20
ZYG-0.3 600 1170 742 1690 1080 600 40 25 20
ZYG-0.5 700 1236 955 1920 1160 700 40 32 20
ZYG-1.0 900 1585 1216 2153 1510 960 40 32 20
ZYG-1.5 1000 1604 1310 2615 1600 1000 40 40 20
ZYG-2.0 1000 1812 1525 2473 1810 1200 40 40 25
ZYG-2.5 1200 1812 1525 2873 1810 1220 40 40 25
3×ZYG-0.3 600 3390 842 1698 3300 660 16-φ18 550 1200 1059 625 900
3×ZYG-0.5 700 3647 964 1950 3560 760 18-φ18 575 1300 1100 552 1150

External Connection Dimensions

表格
Model Water inlet DN Water outlet DN Draining outlet DN Hot water inlet DN Hot water outlet DN Water outlet (circulation) DN Steam inlet and outlet DN
3×ZYG-0.3 DN40 DN32 DN40 DN32 DN32 DN20 DN20
3×ZYG-0.5 DN40 DN32 DN40 DN32 DN32 DN20 DN20

Structure Chart Legend

  1. Water pump
  2. Stop-check valve
  3. Liquid level meter
  4. Stop-check valve
  5. Nameplate
  6. Pressure meter
  7. Safety valve
  8. Electrical control box for sea water and fresh water
  9. Pressure controller
  10. Body
  11. Electrical control box for hot water tank
  12. Electrical control box bracket
  13. Temperature meter
  14. Temperature controller connection
  15. Liquid level controller
  16. Temperature control valve connection
  17. Electric heater
  18. Man hole cover
  19. Steam heater
  20. Base
  21. Stop valve
  22. Stop-check valve

Note: The description may be different with the product, please contact us for quotation.
