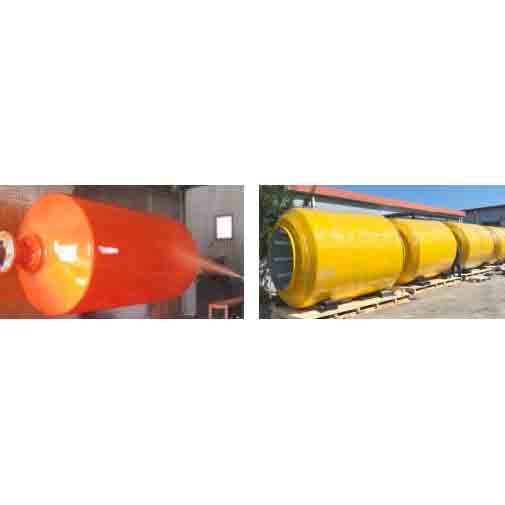

China Foam Filled Fender

China Foam filled fender is tough, heavy-duty, and unsinkable floating fender systems used for harbor, offshore, and ship-to-ship operations. Netted foam fenders are designed with chain and tire nets, while netless foam fenders lack net protection.

Features and Advantages

Unsinkable Foam Core: Made of 100% closed-cell foam, ensuring it remains unsinkable even if the outer skin is punctured and does not absorb water.
High Energy Absorption, Low Reaction Force: Features a variety of high-density foam cores, offering higher performance compared to pneumatic fenders and other rubber fender systems.
Strong and Tough Skin: The polyurethane elastomer is sprayed onto the skin and reinforced with nylon filaments at optimal angles.
Vulcanized Rubber Skin: The rubber skin is vulcanized and reinforced with nylon to provide better abrasion resistance.

Specification Table

Diameter x Length	Standard Capacity
Metric (mm)	English (ft)	Energy Absorption at 60% compression (ft-kips)	Reaction Force at 60% compression (kip)
700 x 1500	2.3 x 4.9	19	3
1000 x 1500	3.3 x 4.9	35	5
1000 x 2000	3.3 x 6.5	50	7
1200 x 2000	3.9 x 6.5	67	10
1350 x 2500	4.4 x 8.2	112	16
1500 x 3000	4.9 x 9.8	171	24
1700 x 3000	5.6 x 9.8	208	29
2000 x 3500	6.5 x 11.5	335	47
2000 x 4000	6.5 x 13.1	398	56
2000 x 4500	6.5 x 14.7	460	64
2500 x 4000	8.2 x 13.1	591	82
2500 x 5500	8.2 x 18.0	885	123
3000 x 6000	9.8 x 19.7	1365	189
3300 x 4500	10.8 x 14.7	1105	153
3300 x 6500	10.8 x 21.4	1786	248
