Cargo Hold & Oil Tank Ladder
CB3218-84 (Also replaces CB281-77 and CB*635-67)

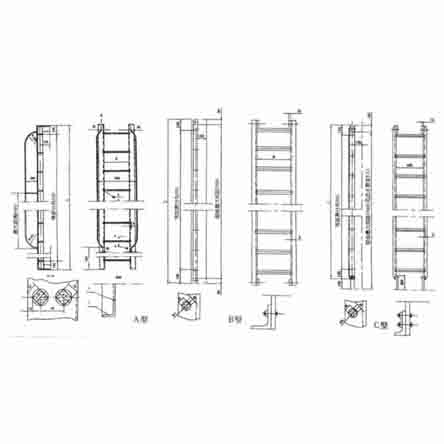

Diagrams
The image contains technical diagrams for three types of cargo hold and oil tank ladders: Type A, Type B, and Type C. Each type is shown from multiple angles (front view, side view, and top view) with detailed dimensional annotations in millimeters (mm).
Types and Descriptions
- Type A: Oil tank ladder
- Type B: Angle – steel cargo hold ladder
- Type C: Ball – flat steel cargo hold ladder
Technical Specification Table
| Type | Name | Ladder Frame Material Specification | Ladder Width B (mm) | Ladder Length L (mm) (Range: 1200 – 6000) |
|---|---|---|---|---|
| A | Oil tank ladder | L 100×80×10 | 300, 400 | 1200 – 6000 |
| B | Angle – steel cargo hold ladder | L 80×50×8 | 300, 400 | 1200 – 6000 |
| C | Ball – flat steel cargo hold ladder | ∟140×35×9 | 400 | 2100 – 6000 |
Weight Table
| Number of Steps | L (mm) for Each Type | B = 300 (Weight in kg) | B = 400 (Weight in kg) |
|---|---|---|---|
| A | B | C | |
| 4 | 1200 | 1200 | 1200 |
| 5 | 1500 | 1500 | 1500 |
| 6 | 1800 | 1800 | 1800 |
| 7 | 2100 | 2100 | 2100 |
| 8 | 2400 | 2400 | 2400 |
| 9 | 2700 | 2700 | 2700 |
| 10 | 3000 | 3000 | 3000 |
| 11 | 3300 | 3300 | 3300 |
| 12 | 3600 | 3600 | 3600 |
| 13 | 3900 | 3900 | 3900 |
| 14 | 4200 | 4200 | 4200 |
| 15 | 4500 | 4500 | 4500 |
| 16 | 4800 | 4800 | 4800 |
| 17 | 5100 | 5100 | 5100 |
| 18 | 5400 | 5400 | 5400 |
| 19 | 5700 | 5700 | 5700 |
| 20 | 6000 | 6000 | 6000 |
Attention please: The description might be incorrect, please contact us for confirmation.
