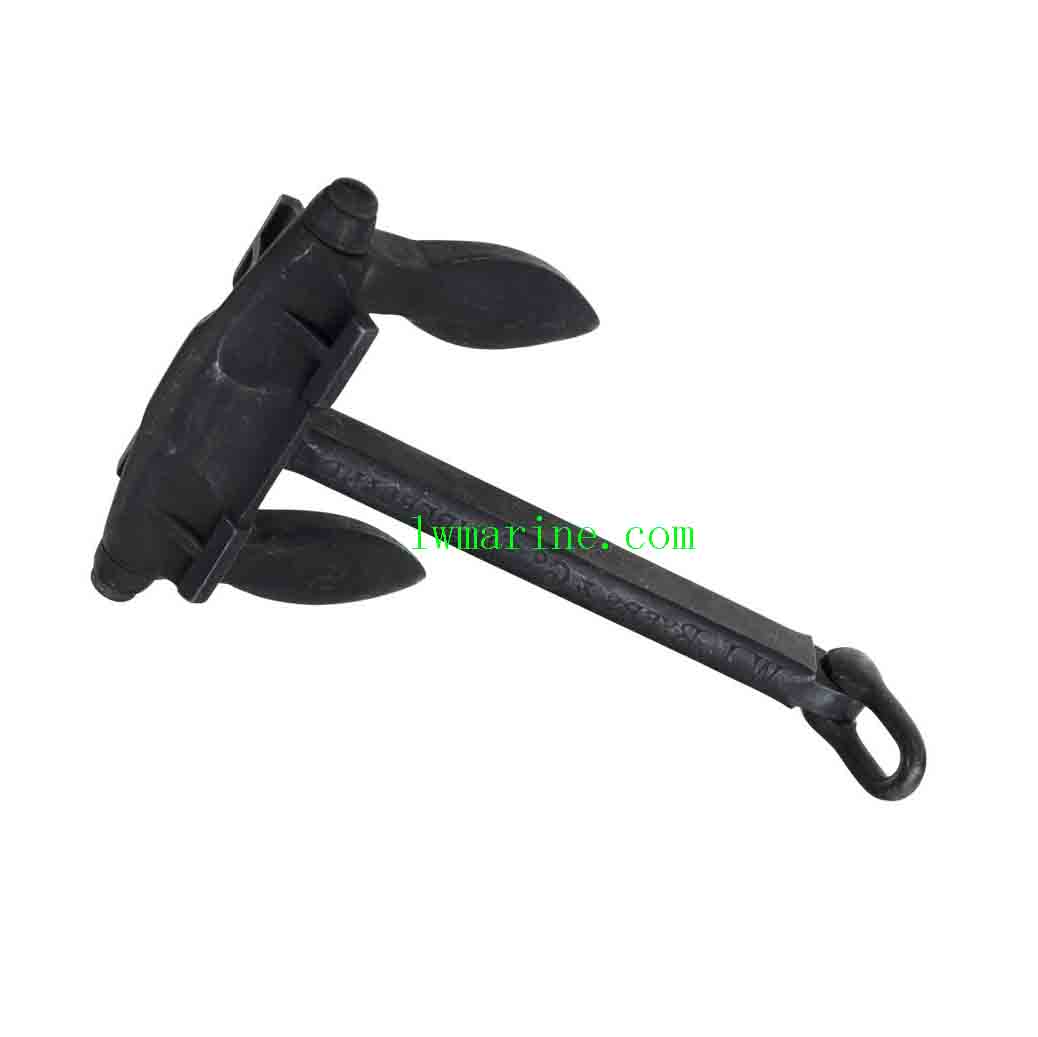

Byers Stockless Anchor
Product Overview:
The Byers anchor represents a classic stockless anchor design, featuring a two-component construction optimized for reliable marine performance. Its efficient design consists of:
-
Anchor Shank: The elongated structural member providing vertical stability
-
Dual Flukes: Precision-curved gripping surfaces engineered for immediate seabed penetration
Technical Specifications:
-
Anchor Type: Byers Pattern Stockless
-
Construction Material: Marine-grade ZG200-400C cast steel
-
Weight Range: 220kg – 9,550kg (custom sizes available)
-
Surface Protection: Heavy-duty bituminous coating (300μm)
Key Performance Features:
• Rapid setting in most seabed conditions
• Balanced weight distribution for consistent performance
• Self-stowing design for hawse pipe compatibility
• Maintenance-free operation
Certifications & Compliance:
-
CCS, ABS, BV, LR, NK, RINA certified
-
Meets international mooring standards
Packaging Options:
-
Protective marine cartons
-
Reinforced plywood crates
-
Custom pallet configurations
-
Bare packing for project shipments
Marine Applications:
-
Commercial cargo vessels
-
Offshore supply ships
-
Tanker fleets
-
General marine operations
Parameters:
| C | D | A | B | Anchor Weight |
| (mm) | (mm) | (mm) | (mm) | (kg) |
| 495 | 165 | 1041 | 420 | 220 |
| 502 | 165 | 1067 | 432 | 266 |
| 502 | 178 | 1092 | 432 | 318 |
| 600 | 178 | 1143 | 457 | 360 |
| 610 | 209 | 1168 | 533 | 412 |
| 650 | 209 | 1219 | 533 | 457 |
| 660 | 216 | 1245 | 572 | 493 |
| 660 | 216 | 1321 | 572 | 600 |
| 720 | 228 | 1422 | 610 | 700 |
| 740 | 241 | 1575 | 640 | 805 |
| 787 | 241 | 1600 | 650 | 915 |
| 838 | 254 | 1651 | 711 | 1025 |
| 898 | 266 | 1829 | 750 | 1250 |
| 920 | 266 | 1880 | 750 | 1350 |
| 946 | 292 | 1880 | 787 | 1475 |
| 965 | 292 | 1930 | 787 | 1600 |
| 999 | 305 | 1981 | 838 | 1720 |
| 1022 | 305 | 1981 | 838 | 1870 |
| 1041 | 318 | 2108 | 838 | 2030 |
| 1080 | 330 | 2184 | 889 | 2200 |
| 1110 | 330 | 2210 | 814 | 2360 |
| 1118 | 330 | 2286 | 946 | 2540 |
| 1180 | 343 | 2362 | 980 | 2700 |
| 1180 | 343 | 2438 | 990 | 2900 |
| 1219 | 370 | 2438 | 1041 | 3100 |
| 1346 | 369 | 2489 | 1041 | 3300 |
| 1372 | 369 | 2510 | 1067 | 3500 |
| 1398 | 393 | 2591 | 1092 | 3750 |
| 1397 | 393 | 2616 | 1092 | 4000 |
| 1398 | 406 | 2667 | 1092 | 4150 |
| 1448 | 406 | 2692 | 1143 | 4370 |
| 1448 | 406 | 2769 | 1168 | 4575 |
| 1448 | 432 | 2870 | 1168 | 4780 |
| 1448 | 436 | 2896 | 1168 | 5030 |
| 1448 | 438 | 3048 | 1168 | 5250 |
| 1473 | 445 | 3073 | 1168 | 5450 |
| 1473 | 452 | 3099 | 1168 | 5700 |
| 1473 | 457 | 3099 | 1168 | 5900 |
| 1549 | 457 | 3124 | 1295 | 6100 |
| 1549 | 457 | 3200 | 1321 | 6350 |
| 1549 | 470 | 3277 | 1321 | 6600 |
| 1549 | 470 | 3353 | 1321 | 6800 |
| 1549 | 470 | 3353 | 1321 | 7100 |
| 1702 | 470 | 3353 | 1346 | 7350 |
| 1702 | 477 | 3353 | 1346 | 7700 |
| 1702 | 477 | 3353 | 1422 | 8000 |
| 1753 | 528 | 3404 | 1422 | 8300 |
| 1753 | 528 | 3404 | 1422 | 8650 |
| 1803 | 559 | 3505 | 1499 | 8900 |
| 1803 | 572 | 3658 | 1499 | 9800 |
| 1803 | 572 | 3759 | 1524 | 9550 |
The description/sizes may be different with goods, please check with us when order.
