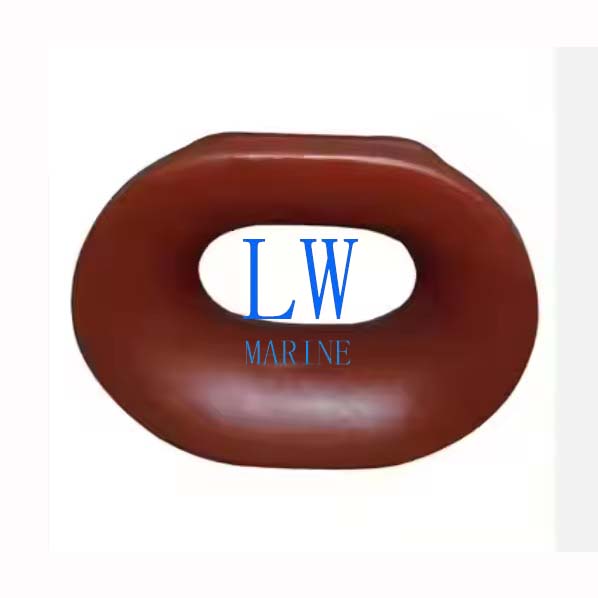

EU Type Bulwark Mounted Chock – Superior Side-Mounted Mooring Solution
Engineered for Optimal Bulwark Performance
Designed specifically for side-mount applications, our EU Type Bulwark Mounted Chock delivers reliable rope guidance where you need it most. This professional-grade mooring solution features:
✔ Heavy-duty cast steel construction
✔ Seamless bulwark integration
✔ Superior load distribution
✔ Corrosion-resistant marine-grade materials
Key Advantages:
• Specifically designed for bulwark mounting applications
• Smooth rope contact surfaces to prevent line damage
• Robust construction withstands harsh marine environments
• Compatible with standard EU type mooring systems
Certified Marine Quality
All chocks meet stringent international standards with certifications from:
-
CCS
-
ABS
-
BV
-
LR
-
NK
-
RINA
Parameters:
| Nominal | Weight | Dimension(mm) | ||||||||
| Size | ||||||||||
| A x B | ||||||||||
| (mm) | (kg) | A | B | C | D | E | H | K | L | N |
| 315×250 | 198 | 315 | 250 | 695 | 630 | 432 | 342 | 22 | 168 | 497 |
| 425×280 | 358 | 425 | 280 | 925 | 780 | 516 | 450 | 26 | 224 | 661 |
| 600×315 | 547 | 600 | 315 | 1160 | 875 | 571 | 504 | 30 | 250 | 866 |
| 600×450 | 629 | 600 | 450 | 1160 | 1010 | 706 | 504 | 30 | 250 | 866 |
The description/sizes may be different with goods, please check with us when order.
