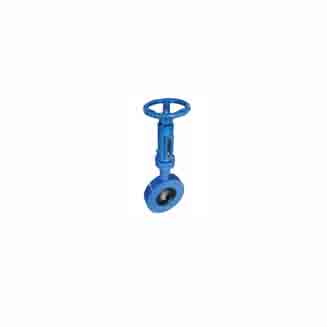

Bolted – bonnet worm – gear solid – body butterfly valve
| Bolted – bonnet worm – gear solid – body butterfly valve | |
|---|---|
| Product type | LSZBY711P – 5K/10K |
| Nominal diameter | DN50 – DN150, DN200 – DN250, DN300 – DN350 |
| Nominal Pressure | PN10/PN16/JIS5K/JIS10K |
| Suitable medium | natural gas, sea water, cold water, hot water (neutral gas, sea water, cold and warm water) |
| Suitable temperature | -23°C – 120°C |
| Material | Valve body: cast iron, ductile iron, cast steel, stainless steel, aluminum bronze (Body: cast iron, ductile iron, WCB, stainless steel, Aluminum Bronze); Valve disc: 304 plate, 316 plate, 316L plate, aluminum bronze plate, rubber – lined plate (Disc: SS304, SS316, SS316L, Aluminum Bronze, Rubber); Valve seat: NBR, EPDM, VITON, PTFE (Seat: NBR, EPDM, VITON, PTFE); Valve stem: carbon steel, stainless steel (Stem: 45#, SS416, SS304, SS316, SS316L) |
Attention please: The description may be different with the product, please contact us for quotation.
