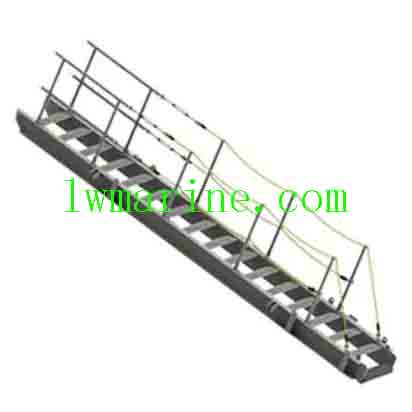

Durable Boat Steel Accommodation Ladder – ISO5488-79 Compliant with Custom OEM Options
Our Boat Steel Accommodation Ladder is a robust and reliable gangway ladder designed specifically for marine applications. Featuring turnable treads, this ladder is crafted from high-quality steel, ensuring exceptional durability and strength. It is ideal for crew boarding and disembarking from various types of vessels, including bulk carriers and general cargo ships. Our accommodation ladder adheres to the ISO5488-79 standard and meets the requirements of leading classification societies, such as CCS, BV, DNV, and KR. Certificates can be provided based on customer requests.
This marine steel accommodation ladder is not only a practical solution for maritime access but also offers customization options to meet specific needs. With OEM services available, we can tailor the ladder to your exact specifications, ensuring seamless integration with your vessel.
Product Features:
- Material: High-grade steel for superior strength and durability.
- Style: Fixed design for stability and ease of use.
- Step: Fixed arch steps with slip-proof grooves and anodized finish for enhanced safety and grip.
- Handrail Options: Available in rope, square steel, or round aluminum to suit different preferences and requirements.
- Standard Compliance: Meets GB1391-87 and other relevant standards.
- OEM Service: Customizable to meet specific vessel requirements.
Drawing and Detailed Specifications of Marine Steel Accommodation Ladder:
| Number of Steps | L (mm) | L1 (mm) | L2 (mm) | B (mm) | C (mm) | D (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 12 | 4995 | 3600 | 3800 | 555 | 260 | 350 | 3600 | 705 |
| 14 | 5995 | 4200 | 4400 | 555 | 260 | 350 | 4100 | 751 |
| 16 | 6195 | 4800 | 5000 | 555 | 260 | 350 | 4600 | 797 |
| 18 | 6795 | 5400 | 5600 | 555 | 260 | 350 | 5200 | 842 |
| 20 | 7395 | 6000 | 6200 | 555 | 260 | 350 | 5600 | 890 |
| 22 | 7995 | 6600 | 6800 | 605 | 260 | 350 | 6200 | 938 |
| 24 | 8595 | 7200 | 7400 | 605 | 260 | 350 | 6600 | 987 |
| 26 | 9195 | 7800 | 8000 | 605 | 310 | 400 | 7200 | 1144 |
| 28 | 9795 | 8400 | 8600 | 605 | 310 | 400 | 7600 | 1203 |
| 30 | 10395 | 9000 | 9200 | 605 | 310 | 400 | 8200 | 1262 |
| 32 | 10995 | 9600 | 9800 | 605 | 310 | 400 | 8600 | 1383 |
| 34 | 11595 | 10200 | 10400 | 655 | 310 | 460 | 9200 | 1445 |
| 36 | 12195 | 10800 | 11000 | 655 | 360 | 460 | 9600 | 1589 |
| 38 | 12795 | 11400 | 11600 | 655 | 360 | 460 | 10100 | 1653 |
| 40 | 13395 | 12000 | 12200 | 655 | 360 | 460 | 10500 | 1807 |
| 44 | 14595 | 13200 | 13400 | 655 | 410 | 510 | 11500 | 2031 |
| 48 | 15795 | 14400 | 14600 | 655 | 410 | 510 | 12500 | 2260 |
Identification Example: Marine steel accommodation ladder with 12 steps – marine steel accommodation ladder 12 GB1391-87
Parts Name and Material Specifications:
| Parts Name | Material | Type Code | Standard |
|---|---|---|---|
| Girder | Marine Carbon Steel | 2C | GB712-80 |
| Step, Platform | Carbon Steel | A3 | GB700-79 |
| Handrail, Pole | Galvanized Welded Steel Pipe | A3, 20 | YB242-63 |
| Pin of Step | Stainless Steel or Bronze | 2Crl3 (QA19-4) | GB1220-80 (YB458-71) |
| Roller | Assembly of rubber and carbon steel | – | – |
FAQs:
- Q: What materials are used in the construction of your boat steel accommodation ladder?
A: Our ladder is constructed from high-grade steel, including marine carbon steel for the girder and carbon steel for the steps and platform, ensuring durability and strength. - Q: Does your accommodation ladder comply with international standards?
A: Yes, our ladder adheres to the ISO5488-79 standard and meets the requirements of leading classification societies like CCS, BV, DNV, and KR. - Q: Can I customize the handrail options for the ladder?
A: Absolutely! We offer handrail options in rope, square steel, or round aluminum to suit different preferences and requirements. - Q: Do you provide OEM services for the accommodation ladder?
A: Yes, we offer OEM services to customize the ladder according to your specific vessel requirements. - Q: How do the slip-proof grooves on the steps enhance safety?
A: The slip-proof grooves provide additional grip, reducing the risk of slips and falls, especially in wet or slippery conditions, thereby enhancing overall safety for users.
Please Note: The description might be incorrect, please contact us for confirmation.
