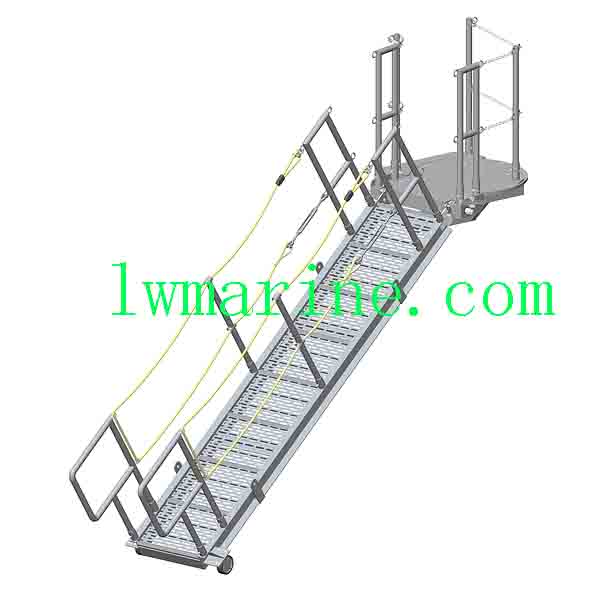

Marine-Grade Aluminum Accommodation Ladder with Rotating Treads for Safe and Efficient Crew Transfers
Our premium marine-grade aluminum accommodation ladder, featuring rotating treads, is meticulously designed to ensure safe, reliable, and adjustable access for crew members and pilots during transfers in port, at sea, or while anchored. This robust aluminum ladder adheres to international standards, including ISO 5488-1979 and CB/T14360-93, ensuring its suitability for all marine environments. The ladder boasts a 55° adjustable positioning angle, foldable handrails for easy storage, and anodized rotating steps that provide exceptional grip and durability, even in the harshest conditions.
This Marine Aluminum Alloy Accommodation Gangway serves a dual purpose, similar to a wharf ladder, facilitating the boarding and disembarking of personnel from various types of ships moored alongside a dock. It features a roller on one side and a hook on the other, allowing for secure attachment to the deck. The gangway’s usage angle is notably larger, enhancing its versatility and ease of use.
Technical Specifications
- Standards Compliance: Our marine aluminum ladder meets multiple international standards, including CB3116-82, JIS F2613-1796, ISO7061-1993, GB/T14360-1993, and ISO 5488-79, ensuring its reliability and safety.
- Maximum Usage Angle: The ladder can be adjusted up to a 55° angle, providing flexibility in various marine settings.
- Load Capacity: Each step is rigorously tested to support up to 82.5KGS, ensuring the ladder’s stability and safety under heavy loads.
- Safety Net Option: A safety net can be included with the ladder upon request, enhancing user safety during transfers.
- Anodized Aluminum Alloy Parts: All aluminum alloy components are anodized, providing superior corrosion resistance and extending the ladder’s lifespan.
- Standard Width: The inside width of the ladder is 600mm, offering ample space for safe passage.
- Handrail Options: The handrails can be either fixed or demountable, catering to different operational needs.
- Customizable Size: The ladder can be customized to meet specific size requirements, ensuring a perfect fit for any vessel.
Main Parts and Material
- Ladder Frame: Constructed from high-quality Aluminium Alloy LF5, ensuring strength and durability.
- Handrail: Made from Aluminum Alloy Pipe LY12, providing a sturdy and comfortable grip.
- Rope: Utilizes durable Nylon rope for added safety and flexibility.
- Walking Plate: Features Anti-slip Aluminum Alloy, ensuring secure footing in all conditions.
- Roller: Nylon roller for smooth and easy operation.
- Hook: Available in Aluminum Alloy or Steel, ensuring secure attachment to the deck.
Technical Specifications Summary
| Feature | Specification |
|---|---|
| Material | Marine-grade aluminum |
| Step Type | Rotating, anodized for enhanced grip |
| Handrail Options | Aluminum or rope, fixed or demountable |
| Length | Custom manufactured to meet specific needs |
| Angle Range | 0-55° adjustable for versatile use |
| Standards | ISO 5488, CB/T14360-93, and more |
| Certifications | CCS, NK, BV, RINA, ABS, LR, DNV·GL |
Note: The description might be incorrect, please contact us for confirmation.
