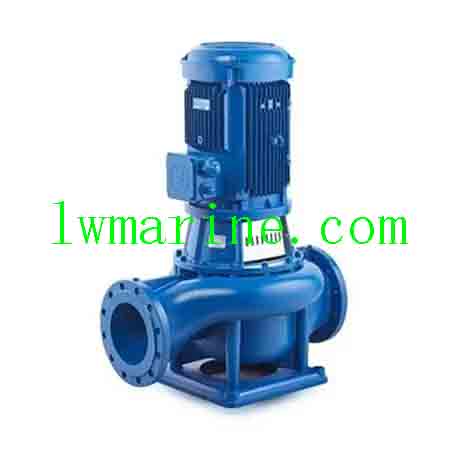

Marine Ballast Pumps – CLZ Series Vertical Centrifugal Pumps
Our CLZ series vertical centrifugal ballast pumps represent a cutting-edge solution in marine fluid handling technology, specifically engineered to meet the rigorous demands of maritime applications. These newly developed pumps are powered by a robust marine motor, ensuring reliable and efficient operation in various marine environments.
The CLZ series ballast pumps are versatile and can be employed for the transportation of a wide range of fluids, including fresh water, seawater, condensate, oils, and saline water. However, it is crucial to note that the medium being transported must not contain any abrasive materials or chemicals that could potentially corrode the pump components, ensuring longevity and optimal performance.
These pumps serve multiple functions in marine settings, acting as fresh water and seawater cooling pumps, burr pumps, ballast pumps, and general-purpose pumps. They are also integral components in seawater desalting devices and marine pressure cabinets, highlighting their versatility and importance in marine engineering.
The maximum temperature of the transported medium should not exceed 80℃ to maintain the pump’s integrity and performance. Additionally, for users requiring self-priming capabilities, an AELC self-priming device can be integrated into the pump system upon request, albeit at an additional cost. This feature enhances the pump’s functionality, making it suitable for a broader range of applications.
Technical Specifications:
- Voltage & Frequency: 380V, 50Hz, 3-phase
- Model Variants: 40CLZ-2, 50CLZ-3, 50CLZ-4.5, 50CLZ-4.5A, 50CLZ-6, 50CLZ-6A, 50CLZ-4, 50CLZ-4A, 50CLZ-9, 65CLZ-5, 65CLZ-4.5, 65CLZ-3, 65CLZ-9, 65CLZ-6, 65CLZ-6A, 65CLZ-8, 65CLZ-8A, 65CLZ-5.5, 65CLZ-5.5A, 65CLZ-4, 65CLZ-4A, 80CLZ-13, 80CLZ-11, 80CLZ-7.5, 80CLZ-5, 80CLZ-9, 80CLZ-9A, 80CLZ-9B
- Flow Rate (m³/h): Ranges from 5 to 60
- Head (m): Ranges from 14.5 to 80
- Speed (rpm): 2900 for all models
- NPSHr (m): 3.2 or 3.5 depending on the model
- Suction Head (m): 6.5 or 6.8 depending on the model
- Shaft Power (kW): Ranges from 1.8 to 22.5
- Motor Power (kW): Ranges from 3 to 30
- Efficiency (%): Ranges from 19 to 62
Frequently Asked Questions (FAQs):
Q1: What is the maximum temperature the CLZ series ballast pumps can handle?
A1: The maximum temperature of the transported medium should not exceed 80℃ to ensure optimal performance and longevity of the pump.
Q2: Can the CLZ series pumps transport corrosive chemicals?
A2: No, the transported medium must not contain any chemicals that are corrosive to the pump components to prevent damage and ensure reliable operation.
Q3: Is it possible to add a self-priming device to the CLZ series pumps?
A3: Yes, an AELC self-priming device can be integrated into the pump system upon request, although this will incur an additional cost.
Q4: What are the typical applications of the CLZ series ballast pumps?
A4: The CLZ series pumps are used as fresh water and seawater cooling pumps, burr pumps, ballast pumps, general-purpose pumps, and in seawater desalting devices and marine pressure cabinets.
Q5: How do I select the right model of the CLZ series pump for my application?
A5: The selection of the appropriate model depends on various factors such as the required flow rate, head, and the specific characteristics of the medium being transported. It is recommended to consult with our technical team to determine the most suitable pump model for your specific needs.
