API600 CLASS 150 OS&Y CAST STEEL GATE VALVE
TECHNICAL REQUIREMENT:
- Design and Manufacture: Conform to API 600
- Flange dimensions: Conform to ASME B16.5
- Face to Face dimensions: Conform to ASME B16.10
- Testing: Conform to API 598
- Driving mode: hand wheel, bevel gear, electric
MATERIALS OF PARTS

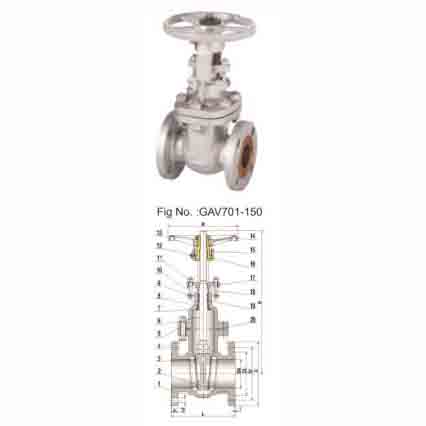

Fig No.: GAV701-150
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | A216-WCB |
| 2 | SEAT RING | A105+CR13 |
| 3 | WEDGE | A216-WCB+CR13 |
| 4 | BONNET BOLT NUT | A194-2H |
| 5 | BONNET STUD | A193-B7 |
| 6 | STEM | A182-F6A |
| 7 | BONNET | A216-WCB |
| 8 | STEM BACK SEAT | A276-420 |
| 9 | EYEBOLT PIN | CARBON STEEL |
| 10 | EYEBOLT | CARBON STEEL |
| 11 | EYEBOLT NUT | CARBON STEEL |
| 12 | GREASE FITTING | BRASS+STEEL |
| 13 | HANDWHEEL NUT | CARBON STEEL |
| 14 | HANDWHEEL | DUCTILE IRON |
| 15 | YOKESLEEVE JAM NUT | CARBON STEEL |
| 16 | YOKESLEEVE | BRONZE |
| 17 | GLAND FLANGE | A216-WCB |
| 18 | GLAND | A216-WCB |
| 19 | PACKING | GRAPHITE |
| 20 | BONNET GASKET | GRAPHITE+304 |
DIMENSIONS DATA (MM)
| NPS | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 177.8 | 190.5 | 203.2 | 228.6 | 254 | 266.7 | 292.1 | 330.2 | 355.6 | 381 | 406.4 | 432 | 457.2 | 508 |
| D | 152 | 178 | 191 | 229 | 254 | 279 | 340 | 406 | 483 | 533 | 597 | 635 | 699 | 813 |
| D1 | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
| b | 14.4 | 16.4 | 17.9 | 22.4 | 23.9 | 26.9 | 28.9 | 30.2 | 33.9 | 35.4 | 38.4 | 41.4 | 46.4 | |
| n-d | 4-19 | 4-19 | 4-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-28 | 16-28 | 16-31 | 20-31 | 20-34 | 20-37 | 24-37 |
| f | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
| H | 345 | 387 | 430 | 513 | 583 | 648 | 790 | 935 | 1100 | 1200 | 1330 | 1480 | 1635 | 1935 |
| W | 200 | 200 | 250 | 250 | 300 | 300 | 350 | 400 | 450 | 500 | 600 | 600 | 650 | 650 |
Attention please: The description may be different with the goods, please check with us when order.
