DIN3356 PN16 CAST STEEL GLOBE VALVE
TECHNICAL REQUIREMENT:
- Design and Manufacture: Conform to DIN EN 13789, DIN 3356
- Flange dimensions: Conform to EN1092 – 1 PN16
- Face to Face dimensions: Conform to EN558 – 1 list 1
- Testing: Conform to EN12266 – 1
MATERIALS OF PARTS

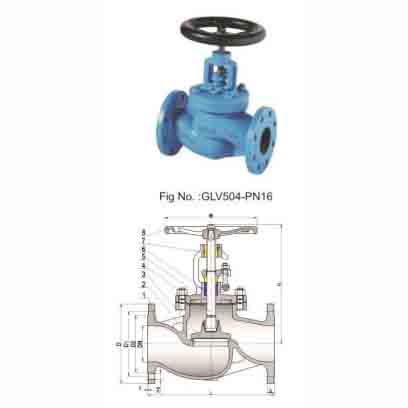

Fig No.: GLV504 – PN16
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | WCB |
| 2 | SEAT RING | CUSN5ZN5PB5 – C/SS304 |
| 3 | DISC | CUAL10FE5N5 – C/2CR13 |
| 4 | STEM | CW713R/2CR13 |
| 5 | BONNET | WCB |
| 6 | PACKING | GRAPHITE |
| 7 | STEM NUT | 16MN |
| 8 | HANDWHEEL | EN – GJS – 500 – 7 |
DIMENSIONS DATA (MM)
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 |
| D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 |
| D2 | 45 | 56 | 68 | 78 | 88 | 102 | 122 | 138 | 158 | 188 | 218 | 268 | 330 | 378 |
| b | 16 | 18 | 18 | 18 | 18 | 20 | 20 | 22 | 24 | 24 | 26 | 28 | 32 | 34 |
| n – d | 4 – 14 | 4 – 14 | 4 – 14 | 4 – 18 | 4 – 18 | 4 – 18 | 8 – 18 | 8 – 18 | 8 – 22 | 8 – 23 | 8 – 26 | 12 – 28 | 16 – 30 | 16 – 34 |
| f | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| H | 189 | 189 | 211 | 219 | 229 | 237 | 265 | 291 | 323 | 384 | 432 | 491 | 630 | 750 |
| W | 120 | 120 | 180 | 180 | 180 | 200 | 255 | 306 | 360 | 406 | 450 | 508 | 508 | 508 |
