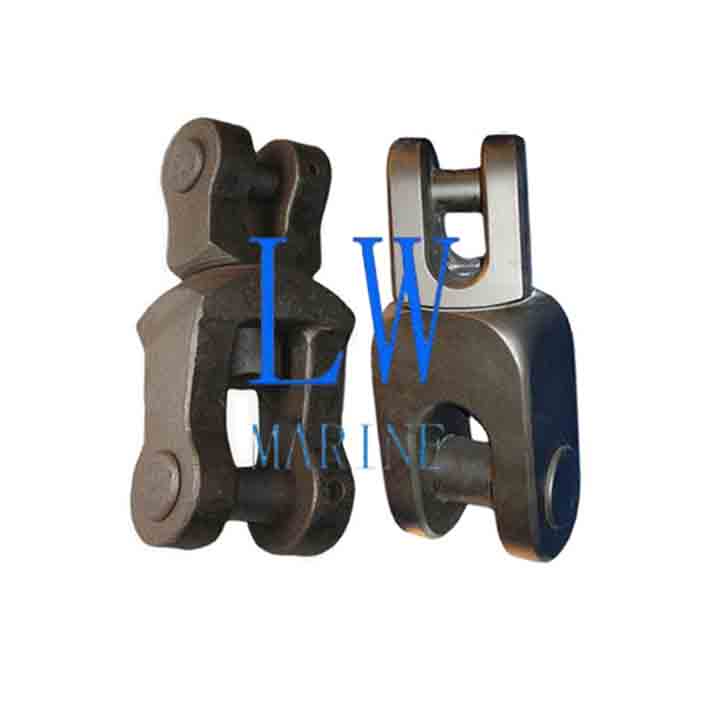

Anchor Swivel Shackle

Anchor Swivel Shackle

Certificate: CCS, GL and BV certificate.
Delivery Time: 15days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

Anchor Swivel Shackle – Type A

Key Features:
✔ 360° Rotation – Swivel design prevents twisting and reduces stress on rigging systems.
✔ Heavy-Duty Construction – Forged steel body with a removable screw pin for secure connections.
✔ High Load Capacity – Built to withstand extreme forces in marine, offshore, and industrial lifting.
✔ Corrosion-Resistant Options – Available in black painted or hot-dip galvanized finishes.
✔ Certified Safety – Compliant with CCS, ABS, BV, LR, NK, RINA, and other major standards.

Technical Specifications:

  • Type: Swivel Shackle (Type A)

  • Material: High-grade forged steel

  • Grades: Grade 2 / Grade 3

  • Size Range: 24mm to 162mm (Diameter)

  • Weight Capacity: 22kg to 5,470kg

  • Surface Treatment: Black bituminous paint / Hot-dip galvanized

  • Packaging: Carton or wooden case (customizable upon request)

Anchor Swivel Shackle Specification:

Model R R1 L B B1 b b1 d10 d11 d12 l7 l8 Applicable Dia. (mm) Weight (kg)
M2 M3
M4
24 48 37.5 377 143 94 80 34 M36 58 60 31 140 61.5 22,24 22
28 58 47 442 162 116 87 39 M42 62 68 36 157 73 26,28 43
32 62 53 493 185 124 89 45 M52 68 78 42 171 73 30,32 98
38 74 58 552 218 148 101 53 M56 76 82 49 185 94 34,36,38 118
42 82 66 615 243 164 110 59 M64 85 90 55 206 106 40,42 128
48 98 75 700 277 196 123 67 M76 90 98 62 235 118 44,46,48 160
52 109 88 782 298 202 133 73 M90 96 107 68 248 125 50,52 289
56 109 88 802 322 218 146 78 M90 102 110 73 258 135 54,56 300
62 126 100 877 356 252 157 88 M100 106 118 82 275 152 58,60,62 330
68 136 106 968 380 265 154 95 M110 116 128 88 320 150 64,66,68 458
76 152 120 1065 426 304 168 106 M120 125 136 100 325 184 70,73,76 522
81 164 130 1142 454 328 172 113 M130 132 145 105 340 183 78,81 815
87 176 140 1218 487 352 180 122 M140 138 152 113 360 214 84,87 1007
95 190 152 1326 532 380 200 133 M150 148 160 124 400 231 90,92,95 1300
102 206 164 1448 571 412 210 143 M165 156 168 133 440 253 97,100,102 1610
107 210 176 1538 600 420 220 150 M175 162 178 140 475 269 105,107 1627
117 230 188 1638 660 460 225 165 M190 168 184 154 491 315 111,114,117 2022
122 250 200 1756 705 488 268 175 M190 190 190 165 510 284 120,122 2336
127 260 210 1828 735 508 280 185 M200 200 200 170 530 296 124,127 2636
132 270 220 1900 765 528 290 190 M205 205 205 178 550 307 130,132 2960
137 285 225 1972 795 548 300 200 M210 210 210 185 575 319 137 3309
142 295 235 2044 825 568 310 205 M215 215 215 190 595 330 142 3685
147 305 240 2116 850 588 295 215 M220 220 220 198 615 342 147 4088
152 315 250 2188 880 608 335 220 M225 225 225 205 635 354 152 4520
157 325 260 2260 910 628 345 225 M235 235 235 210 660 365 157 4980
162 335 270 2332 940 648 355 235 M240 240 240 218 680 377 162 5470

The description/sizes may be different with goods, please check with us when order.
