Aluminium Light Fixed Window – 261.YHS-017
Application
Used for cabins on various types of ships that require soundproof and heat insulation performance.

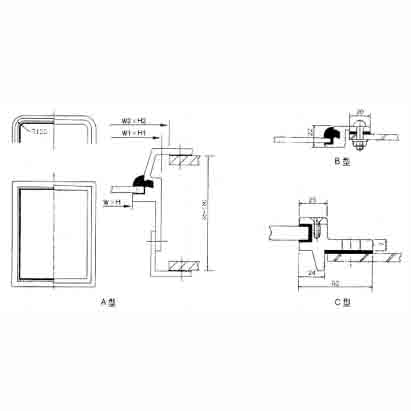

Types
-
Type A
-
Type B
-
Type C
(Refer to original document for type differentiation.)
Dimensions and Specifications (See Table Below)
| Clear Size W × H | External Size W1 × H1 | Cutout Size W2 × H2 | Glass Thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| 500 × 300 | 560 × 360 | 564 × 364 | 6 | 5.9 |
| 560 × 400 | 620 × 460 | 624 × 464 | 6 | 9.1 |
| 700 × 500 | 760 × 560 | 764 × 564 | 6 | 13.3 |
| 800 × 600 | 880 × 660 | 884 × 664 | 6 | 16.7 |
| 1000 × 800 | 1060 × 800 | 1064 × 864 | 6 | 20.1 |
| 1200 × 1000 | 1280 × 1000 | 1284 × 1064 | 6 | 24.6 |
| 1400 × 1200 | 1480 × 1200 | 1484 × 1284 | 6 | 29.2 |
| 1700 × 1400 | 1780 × 1400 | 1784 × 1484 | 6 | 35.5 |
Note: The description may be different with the product, please contact us for quotation.
