Aluminium Alloy Wharf Ladder
CB*3116 – 82
Diagrams

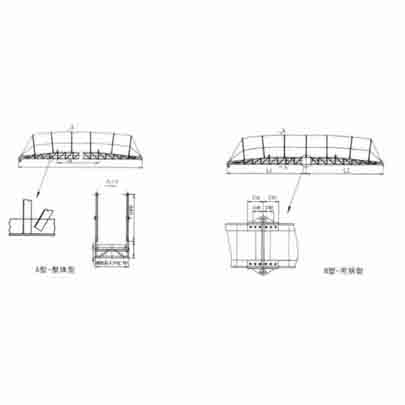

The image contains two technical diagrams of the aluminium alloy wharf ladder.
- The left – hand side shows the overall structure of Type A (integral type) with a front view and a sectional view (A – A).
- The right – hand side shows Type B (detachable type) with a front view, a top view, and a detailed sectional view.
Each view is annotated with dimensions in millimeters (mm).
Specification Tables
Type A – Integral Type
| Model | Main Dimensions (mm) | Weight (kg) |
|---|---|---|
| L | l | |
| A8 | 8000 | 3200 |
| A10 | 10000 | 4830 |
| A12.5 | 12500 | 4830 |
| A15 | 15000 | 7230 |
Type B – Detachable Type
| Model | Main Dimensions (mm) | Weight (kg) |
|---|---|---|
| L1 | L2 | |
| B8 | 4000 | 4000 |
| B10 | 5000 | 5000 |
| B12.5 | 6250 | 6250 |
| B15 | 7500 | 7500 |
Marking Example
An A – type aluminium alloy wharf ladder with a length L of 8000mm:
Aluminium Alloy Wharf Ladder A8000 CB*3116 – 82
Attention please: The description may be different with the goods, please check with us when order.
