Air Horn YQ-15
Component List
| No. |
Description |
| 1 |
HORN |
| 2 |
PRONUNCIATION BODY ASSEMBLY |
| 3 |
DIAPHRAGM |
| 4 |
REAR COVER |
| 5 |
THREE-WAY VALVE ASSEMBLY |
| 6 |
ROD |
Technical Parameters
| Parameter |
Specification |
| Audibility range |
1.5 mile |
| Length of applicable vessel |
75-200 m |
| Sound pressure level |
138 dB |
| Working Air Pressure |
1.0MPa |
| Weight |
7.0 kg |
| Color |
BG01 Medium Green Gray |
| Quantity |
1 set |
Drawing Document Information
| Drawing Mark |
Weight |
Scale |
|
7.0kg |
|
| Total Sheets |
1 Sheet |
|
| Sheet No. |
1 |
|
Engineering Change & Approval Table
| Mark |
Number of Changes |
Change Document No. |
Signature |
Date |
| Design |
Standardization |
|
|
|
| Quality Joint Signature |
Approval |
|
|
|
| Review |
|
|
|
|
| Process |
Date |
|
|
|

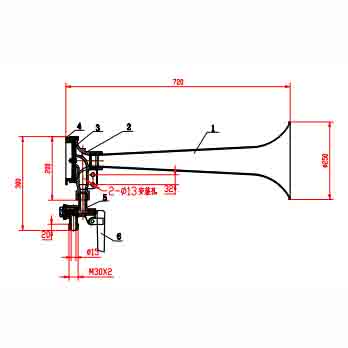

Key Dimension & View Markings
- Main View Overall Dimensions: 720mm, 350mm, 200mm, 32mm
- Mounting Hole Specification: 2-φ13
- Thread Specification: M30×2
- Local Dimension Markings: φ15, 6mm
- Component Position Markings: 1, 2, 3, 4, 5, 6
Note: The description may be different with the product, please contact us for quotation.
