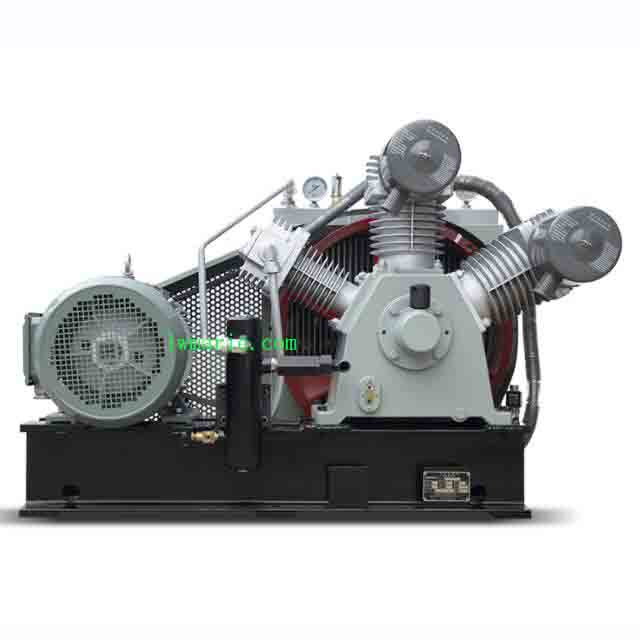

Air-Cooled Marine Compressor
The Air-Cooled Marine Compressor is a compact, high-performance unit engineered to deliver 10 m³/h capacity at 1.0 MPa pressure, making it the perfect compact solution for vessels with limited engine room spaces. Designed specifically for small to medium vessels, this direct-drive reciprocating compressor provides a reliable source of compressed air for essential marine starting systems and pneumatic controls, all while eliminating cooling water requirements with its efficient air-cooled design.
As a member of our comprehensive range of small marine air compressors, the combines robust construction with exceptional reliability. Its simple, direct-drive configuration minimizes moving parts, reducing maintenance needs and ensuring long-term dependable service. Whether for a fishing boat, a small workboat, or a yacht, this compressor delivers the power you need without occupying valuable engine room real estate.
Key Features & Benefits
-
✔ Ultra-Compact Design: With its space-saving dimensions (850×400×440mm for the model), this compressor is the ideal choice for tight marine installations where every inch of space counts.
-
✔ Maintenance-Free Cooling: The efficient air-cooled system uses optimized cooling fins to dissipate heat effectively, completely removing the need for complex and failure-prone water cooling connections.
-
✔ Energy Efficient Operation: Featuring low power consumption (just 2.2kW / 3HP), this unit significantly reduces onboard operating costs compared to larger, less efficient models.
-
✔ Direct Drive Configuration: The simple, robust direct drive design ensures reliable power transmission with minimal moving parts, leading to enhanced durability and reduced maintenance.
-
✔ Lightweight Construction: At just 85kg, it is easy to install, maneuver, and service, reducing installation time and effort.
Technical Specifications (CWF Series)
Below are the specifications for the complete CWF series of air-cooled marine compressors, with the CWF-10/1 model highlighted.
| Model | Type | Discharge Capacity (m³/h) | Discharge Pressure (Mpa) | Power (KW) | HZ (Frequency) | Speed (r/min) | Weight (kg) | Overall Size (LxWxH) mm |
|---|---|---|---|---|---|---|---|---|
| CV-6/10F | 6 | 1.0 | 1.5 | 50/60 | 930 | 70 | 740 x 340 x 370 | |
| CW-10/10F | 10 | 1.0 | 2.2 | 50/60 | 750 | 85 | 850 x 400 x 440 | |
| CW-15/10F | 15 | 1.0 | 3 | 50/60 | 1100 | 85 | 850 x 400 x 440 | |
| CW-20/10F | 20 | 1.0 | 4 | 50/60 | 720 | 130 | 940 x 420 x 600 | |
| CV-40/10F | 40 | 1.0 | 7.5 | 50/60 | 640 | 260 | 1070 x 600 x 650 | |
| CW-60/10F | 60 | 1.0 | 11 | 50/60 | 850 | 420 | 1320 x 720 x 860 |
Frequently Asked Questions (FAQs)
Q1: What are the primary applications for the CWF-10/1 marine compressor on a small vessel?
A: The CWF-10/1 is a versatile unit designed to support critical onboard systems. Its primary applications include supplying compressed air for marine starting systems (starting small to medium auxiliary diesel engines), powering pneumatic controls and automation, providing air for deck operations like horn and whistle signals, and serving as a general service air supply for maintenance and cleaning tasks.
Q2: What does “air-cooled” mean, and why is it beneficial for a marine compressor?
A: An air-cooled compressor uses ambient air flowing over finned surfaces to remove the heat generated during compression. The primary benefit for marine applications is the elimination of cooling water requirements. This simplifies installation, as you don’t need to run and connect cooling water pipes. It also removes the risk of internal corrosion, fouling, or leaks associated with water-cooled systems, making it a maintenance-friendly and reliable choice.
Q3: What is the advantage of a direct-drive configuration?
A: A direct drive configuration means the compressor pump is coupled directly to the motor shaft, without the use of belts or pulleys. This results in a simpler, more compact design with minimal moving parts. Fewer parts mean less that can wear out or require adjustment, leading to higher reliability, reduced maintenance, and quieter operation compared to belt-driven alternatives.
Q4: Is the CWF-10/1 suitable for use on a fishing boat or small workboat?
A: Yes, absolutely. This compressor is specifically designed for small to medium vessels, making it an ideal choice for fishing boats, small workboats, tugs, and yachts. Its compact design allows it to fit easily into the often-cramped engine rooms of these vessels, while its 1.0 MPa pressure and 10 m³/h capacity are perfectly matched to the demands of their starting and control systems.
Q5: What voltage and frequency options are available for this compressor?
A: The CWF-10/1 is available for both 50Hz and 60Hz electrical supplies, making it suitable for vessels operating in different regions worldwide. Please specify your vessel’s voltage and frequency requirements (e.g., 380V/50Hz or 440V/60Hz) when ordering to ensure the correct motor configuration is supplied.
Q6: How much space is needed to install this compressor?
A: The CW-10/10F model has a footprint of just 850mm x 400mm. Its compact dimensions, combined with its lightweight construction (85kg), make it one of the easiest compressors to install in a tight marine installation. It requires minimal clear floor space and can often be positioned in corners or against bulkheads where larger units would not fit.
