Accommodation Ladder for Diver
Top – left and Top – right Images

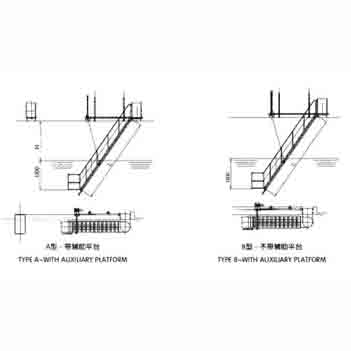

The images are technical diagrams of two types of accommodation ladders for divers. The left – hand diagram is labeled “TYPE A – WITH AUXILIARY PLATFORM”, showing a ladder with an auxiliary platform at the top. The right – hand diagram is labeled “TYPE B – WITH AUXILIARY PLATFORM” (there might be a labeling error as it seems it should be without or another distinction; based on the text below, we assume it’s a different type with its own features), showing a different ladder structure also with an auxiliary platform. Both diagrams have dimensional annotations indicating the length (L), width (B), and other structural dimensions.
Bottom Table
The table provides detailed specifications for different models of the accommodation ladder for divers, with measurements in millimeters (mm) for lengths and other dimensions, and no unit for the number of steps (n).
| Model | Ladder Length L (m) | Number of Steps n | Maximum Selectable Height H (m) | Platform Size L×B (mm) | |
|---|---|---|---|---|---|
| Type A | Type B | ||||
| A | 3.9 | 12 | 1.3 | 8100×500 | 8050×500 |
| 4.2 | 14 | 2.7 | 8800×500 | 7450×500 | |
| 4.8 | 18 | 3.2 | 9100×500 | 7950×500 | |
| 5.4 | 18 | 3.6 | 9900×500 | 8450×500 | |
| B | 6.0 | 20 | 4.1 | 10100×500 | 8950×500 |
| 6.6 | 22 | 4.8 | 10800×500 | 9450×500 | |
| 7.2 | 24 | 5.2 | 11800×500 | 10450×500 | |
| 7.8 | 26 | 5.8 | 12600×500 | 11450×500 |
Note: The maximum selectable height is subject to the following conditions: the water – level of the auxiliary platform drops to 1.8m, the step height is 220mm, and the maximum angle is 60°.
Attention please: The description may be different with the goods, please check with us when order.
