ALUMINIUM ALLOY WHARF LADER
Two Types

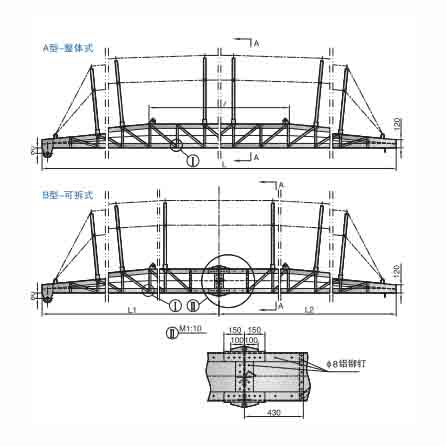

- Type A – Integrated Type: [Technical drawing showing front view, top view (A – A section), and a detailed局部（应为 local，拼写错误，按正确修改） view of the connection part. The drawing includes various dimension labels such as overall length L, width at different sections, height H, and other detailed measurements. There are also labels for different components like the main frame and the connection points.]
- Type B – Detachable Type: [Similar set of technical drawings as Type A, showing front view, top view (A – A section), and detailed local views of the detachable parts and connection points. Dimension labels are also present to indicate the size of different components.]
Detailed Component Views
- Connection Detail: A close – up view showing the connection between parts using Φ8 aluminium rivets with a scale of M1:10.
- Another Local View: A view showing the internal structure and some dimensions related to the folding or moving parts of the ladder, with a scale of M1:10 and some linear dimensions labeled as 150, 100, 430, etc.
Specification Tables
Table for Type A
| Model | L (mm) | l (mm) | H (mm) | h (mm) | Weight (kg) |
|---|---|---|---|---|---|
| A8 | 8000 | 3200 | 350 | 180 | 182 |
| A10 | 10000 | 4830 | 500 | 250 | 221 |
| A12 | 12500 | 4830 | 550 | 300 | 296 |
| A15 | 15000 | 7230 | 750 | 500 | 362 |
Table for Type B
| Model | L1 (mm) | L2 (mm) | H (mm) | h (mm) | Weight (kg) |
|---|---|---|---|---|---|
| B8 | 4000 | 4000 | 350 | 180 | 205 |
| B10 | 5000 | 5000 | 500 | 250 | 244 |
| B12 | 6250 | 6250 | 550 | 300 | 319 |
| B15 | 7500 | 7500 | 750 | 500 | 388 |
Marking Example
For an A – type aluminium alloy wharf ladder with a length L = 8000mm, it is marked as: Aluminium alloy wharf ladder A8 CB*3116 – 82.
Attention please: The description might be incorrect, please contact us for confirmation.
