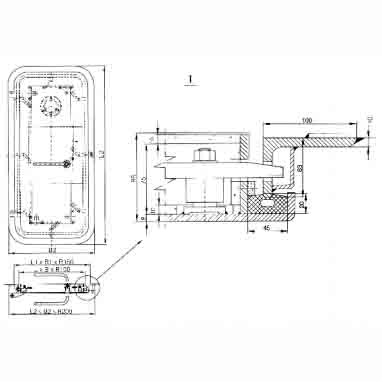

A60 WATERTIGHT STEEL DOOR
262.YHS—055
SUITABLE FOR ACCOMMODATIONS WITH A60 FIRE REPAIR ROOF AND WATERTIGHT REQUIREMENTS, PASSED THE FIRE TEST HELD BY SHANGHAI FAR EAST FIRETESTING CENTER WITH THE TEST REPORT NO. FT04154.
表格
| NO. | NOMINAL SIZE
B×L×R100 |
CUTOUT IN STEEL WALL
B1×L1×R150 |
EXTERNAL SIZE
B2×L2×R200 |
LEAF THICKNESS | REMARKS |
|---|---|---|---|---|---|
| 1 | 600×1700 | 700×1800 | 800×1900 | 95 | WITH BULLEYE φ200 |
| 2 | 650×1700 | 750×1800 | 850×1900 | 95 | WITH BULLEYE φ200 |
| 3 | 700×1700 | 800×1800 | 900×1900 | 95 | WITH BULLEYE φ200 |
| 4 | 600×1800 | 700×1900 | 800×2000 | 95 | WITH BULLEYE φ200 |
| 5 | 700×1800 | 800×1900 | 900×2000 | 95 | WITH BULLEYE φ200 |
| 6 | 800×1800 | 900×1900 | 1000×2000 | 95 | WITH BULLEYE φ200 |
| 7 | 800×1900 | 900×2000 | 1000×2100 | 95 | WITH BULLEYE φ200 |
| 8 | 900×1900 | 1000×2000 | 1100×2100 | 95 | WITH BULLEYE φ200 |
| 9 | 1000×2000 | 1100×2100 | 1200×2200 | 95 | WITH BULLEYE φ200 |
| 10 | 1200×2000 | 1300×2100 | 1400×2200 | 95 | WITH BULLEYE φ200 |
IDENTIFICATION EXAMPLE:
A60 WATERTIGHT STEEL DOOR WITH CLEAR SIZE OF 1200×2000
A60 WATERTIGHT STEEL DOOR 1200×2000 262.YHS-055
Note: The description may be different with the product, please contact us for quotation.
