A0-Type Openable Rectangular Fire Windows
Note
The glass could also be heating glass if needed.

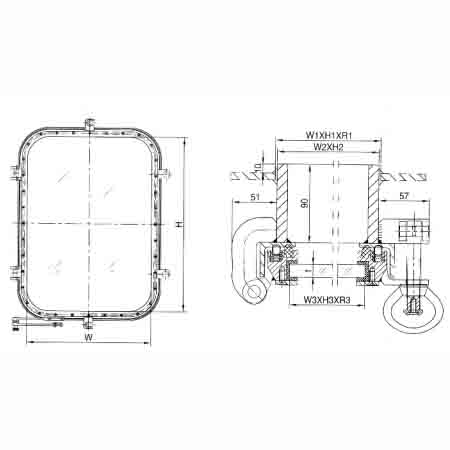

Dimensions and Specifications (See Table Below)
| No. | Nominal Size W × H | Size of B.H. Opening W1 × H1 × R1 | Size of Outline W2 × H2 | Glass Thickness | Size of Glass W3 × H3 × R3 | |
|---|---|---|---|---|---|---|
| 1 | 300 × 425 | 352 × 477 × R76 | 348 × 473 | 15 | 15 | 318 × 443 × R59 |
| 2 | 355 × 500 | 407 × 552 × R76 | 403 × 548 | 15 | 15 | 373 × 518 × R59 |
| 3 | 400 × 560 | 452 × 612 × R76 | 448 × 606 | 15 | 15 | 418 × 578 × R59 |
| 4 | 450 × 630 | 502 × 682 × R126 | 496 × 678 | 15 | 15 | 468 × 648 × R109 |
| 5 | 500 × 710 | 552 × 762 × R126 | 548 × 756 | 15 | 15 | 518 × 728 × R109 |
| 6 | 560 × 800 | 612 × 852 × R126 | 608 × 848 | 15 | 15 | 578 × 818 × R109 |
(Note: The table shows two columns for glass thickness – both listed as 15 in the original; blank cells indicate data not specified.)
Model Designation Example
Clear size is 500 × 800 mm for an A0-class fireproof openable rectangular window (interior).
A0-Class Fireproof Openable Rectangular Window 500×800 – LJ 261.YHS-025
Note: The description may be different with the product, please contact us for quotation.
