FUNNEL CLOSE – ABLE SHUTTER

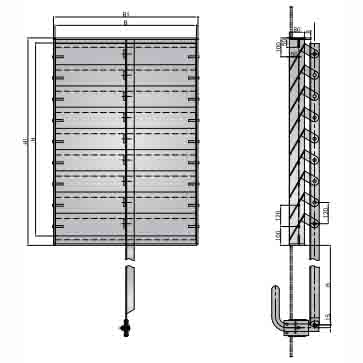

[Three diagrams:
- Front – view of the funnel close – able shutter, showing a rectangular structure with horizontal slats (louvers), labeled with overall dimensions B and H, and the opening of the casing wall B1×H1.
- Side – view diagram showing the cross – section of the shutter, including the thickness of the louvered board and the structure of the frame, with dimensions labeled such as the thickness of the board and the length of the frame parts.
- A detailed view of the bottom part of the shutter, showing the mechanism for closing and opening, with relevant dimension labels.]
Table of Specifications
| Nominal Size B×H (mm) | Opening of Casing Wall B1×H1 (mm) | Louvered Board (Length×Width×Thickness B1×H1×T) | Quantity (QTY) | Weight (KG) |
|---|---|---|---|---|
| 400×580 | 416×680 | 396×160×4 | 5 | 28.6 |
| 500×460 | 516×560 | 396×160×4 (assumed same as above row’s board spec if not misprint, but original text has same board spec for multiple rows) | 4 | 28.3 |
| 500×700 | 516×800 | 396×160×4 | 6 | 37.0 |
| 500×940 | 516×1040 | 496×160×4 | 8 | 45.6 |
| 500×1180 | 516×1280 | 496×160×4 | 10 | 51.2 |
| 500×1420 | 516×1520 | 496×160×4 | 12 | 62.9 |
Marking Example:
For a funnel close – able shutter with a nominal size of 500×940mm: Funnel Close – able Shutter 500×940 CB*3132 – 83.
Attention please: The description might be incorrect, please contact us for confirmation.
