A0 Fireproof Window
A0 Fireproof Window
261NYD007-00
Suitable for accommodations & other marine instruments with A0 fireproof requirement.

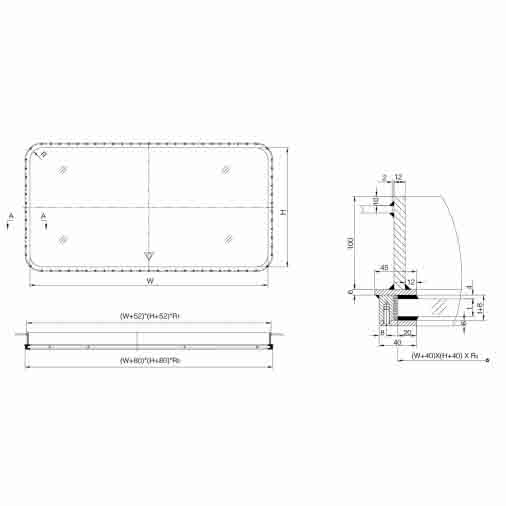

| No. | Nominal size W×H×R | Cutout in steel wall (W+52)×(H+52)×R | External size (W+80)×(H+80)×R | Glass outline size (mm) (W+40)×(H+40)×R | Glass thickness T | |
|---|---|---|---|---|---|---|
| E Type | F Type | |||||
| 1 | 355 × 500 | 407 × 552 | 435 × 580 | 390 × 540 | 10 | 8 |
| 2 | 400 × 560 | 452 × 612 | 480 × 640 | 440 × 600 | 10 | 8 |
| 3 | 450 × 630 | 502 × 682 | 530 × 710 | 490 × 670 | 10 | 8 |
| 4 | 900 × 630 | 952 × 682 | 980 × 710 | 940 × 670 | 12 | 10 |
| 5 | 1000 × 710 | 1052 × 762 | 1080 × 790 | 1040 × 750 | 12 | 10 |
| 6 | 1200 × 800 | 1252 × 852 | 1280 × 880 | 1240 × 840 | 15 | 12 |
| 7 | 1400 × 900 | 1452 × 952 | 1480 × 980 | 1440 × 940 | 15 | 12 |
| 8 | 1600 × 900 | 1652 × 952 | 1680 × 1080 | 1640 × 940 | 19 | 15 |
| 9 | 1800 × 1000 | 1852 × 1052 | 1880 × 1080 | 1840 × 1040 | 19 | 15 |
| 10 | 2000 × 1000 | 2052 × 1052 | 2080 × 1080 | 2040 × 1040 | 19 | 15 |
Identification example
Welding A0 fireproof window with clear size of 1200×800;
A0 fireproof window 1200×800 261NYD007-00.
Note: The description may be different with the product, please contact us for quotation.
