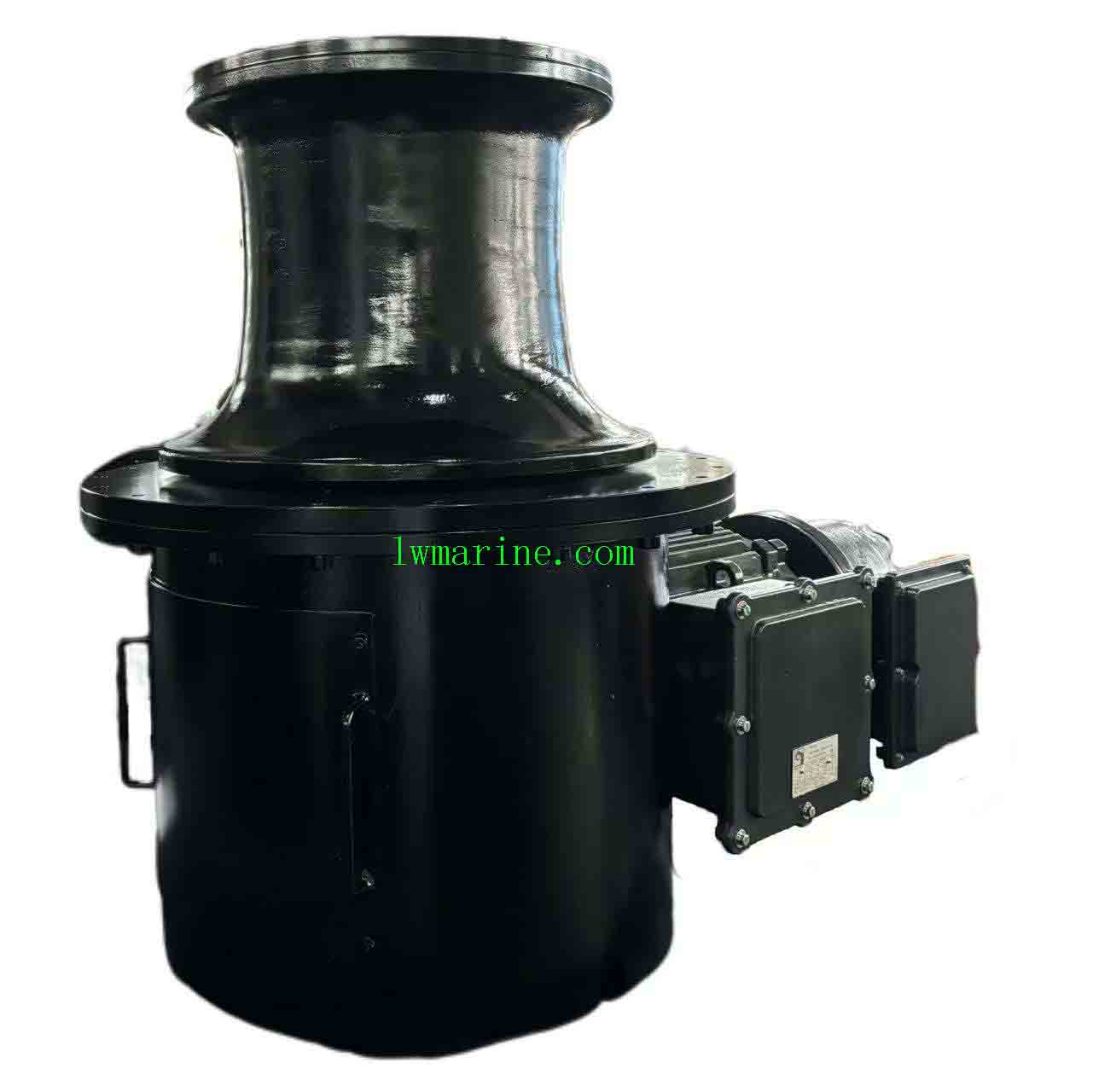

70KN Marine Electric Capstan
Product Overview
The 70KN Marine Electric Capstan is a heavy-duty deck winch designed for anchoring, mooring, and towing operations on commercial vessels. With a 70 kilonewton (~7.1 metric ton) pulling capacity, this robust system is available in both vertical and horizontal configurations to suit various vessel layouts.
Key Specifications
-
Load Capacity: 70KN (7.1 metric tons)
-
Drive System: Electric motor (variable speed options)
-
Mounting Options: Vertical or horizontal
-
Construction: Cast steel or 316L stainless steel (marine-grade corrosion resistance)
-
Compliance: Certified by BV, LR, RINA
Technical Features
✔ Dual Operation Modes
-
Local + remote control for operational flexibility
✔ Safety & Reliability
-
Manual/hydraulic brake & clutch systems
-
Optional gypsy wheel for chain handling
✔ Durable & Low-Maintenance
-
Corrosion-resistant materials for extended service life
-
Easy-access design for maintenance and inspection
✔ Customizable Solutions
-
Tailored to specific load requirements
-
Adaptable mounting (vertical/horizontal)
Parameters:
| Working Load（KN） | Wire | Power | Nom.Speed | Capstan | Speed |
| Dia（mm） | （KW） | ≥（m/min） | Dia(mm) | （r/min） | |
| 70 | φ24 | 30/30/22 | 15 | φ450 | 1400/665/300 |
The description/sizes may be different with goods, please check with us when order.
