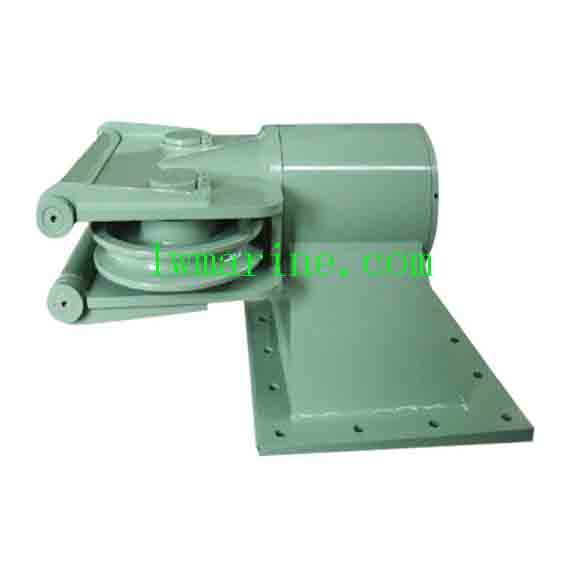

360° Swivel Fairlead
Our top – 360° Swivel Fairlead is meticulously designed to revolutionize the way you handle wire ropes. This high – end wire rope guidance system offers the following exceptional advantages:
✔ Precisely guide wire ropes with diameters ranging from 25 – 64mm, ensuring accurate and reliable operation in various marine and industrial settings.
✔ Significantly minimize friction between the cables and the hull, extending the lifespan of both the ropes and the vessel structure.
✔ Enable free rotation, eliminating the risk of rope tangling and facilitating smooth, uninterrupted operations.
Key Characteristics and Advantages
- Complete Rotation Functionality: With its full 360° swivel ability, this fairlead allows for flexible movement in all directions, providing maximum maneuverability for your wire ropes. Whether you’re performing complex lifting tasks or navigating through tight spaces on a boat, this feature ensures optimal performance.
- Robust and Durable Build: Constructed from premium – grade cast steel, our 360° Swivel Fairlead is built to withstand the toughest conditions. It can endure heavy loads, harsh weather, and frequent use without compromising its structural integrity, making it a long – lasting investment for your operations.
- Friction – Mitigating Performance: By reducing the friction between the ropes and the hull, this fairlead not only protects the ropes from wear and tear but also safeguards the hull from potential damage. This dual – protection mechanism helps lower maintenance costs and ensures the smooth running of your equipment.
- World – Class Certifications: Our product has been rigorously tested and approved by leading global certification bodies, including CCS, ABS, DNV, GL, BV, RINA, and NK. These certifications are a testament to its high quality, safety, and compliance with international standards, giving you peace of mind when using it in your projects.
Tailored Solutions to Meet Your Unique Needs
We understand that different projects may have specific requirements. That’s why we offer a range of custom solutions:
✓ Non – Standard Sizes: If you need a fairlead with dimensions beyond our standard range, we can create a custom – sized product to perfectly fit your application.
✓ Alternative Material Options: In addition to cast steel, we can provide fairleads made from other materials to suit your specific environmental or performance needs. For example, if you require a more corrosion – resistant option for marine use, we can explore alternative materials accordingly.
✓ Project – Specific Certifications: If your project demands certifications other than the ones we already offer, we can work with you to obtain the necessary approvals, ensuring that our product meets all your regulatory requirements.
Technical Parameters
| Model No. | Sheave Dia. (mm) | Rope Dia. (mm) | Weight (kg) |
|---|---|---|---|
| MEP – 25 | 260 | 25 | 480 |
| MEP – 32 | 306 | 32 | 600 |
| MEP – 38 | 440 | 38 | 1980 |
| MEP – 44 | 508 | 44 | 2500 |
| MEP – 50 | 604 | 50 | 3100 |
| MEP – 64 | 608 | 64 | 4800 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
