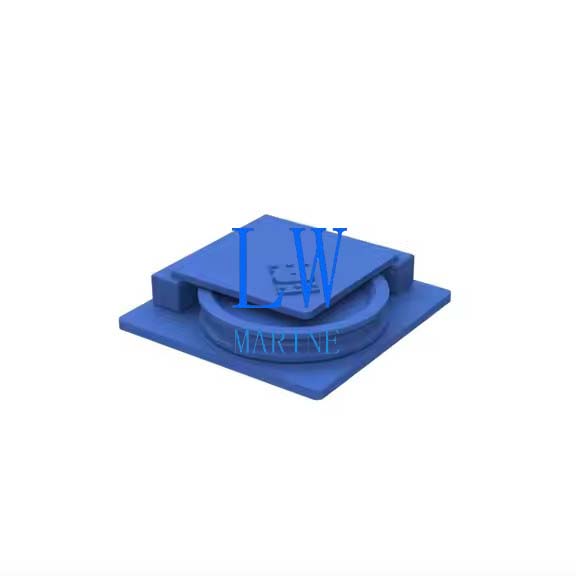

Horizontal Sheave Fairlead
Our Horizontal Sheave Fairlead serves as the perfect complement to swivel fairleads, positioned at the rear to ensure optimal wire rope alignment. This deck-mounted solution offers:
✔ Dual Installation Options – Available with or without foundation
✔ Precision Wire Guidance – Maintains proper rope alignment
✔ Custom Configurations – Tailored to your vessel’s specifications
Superior Engineering Features:
• Robust Cast Steel Construction – Built for marine durability
• Flexible Foundation Options – Custom bases available
• Precision Groove Design – Reduces rope wear and friction
• Universal Compatibility – Works with standard swivel fairleads
Custom Solutions Available:
✓ Bespoke sizing for unique applications
✓ Alternative materials upon request
✓ Special foundation requirements
✓ Project-specific certifications
Parameters:
| Max Wire Dia. | Φ(mm) | A(mm) | B(mm) | H(mm) |
| (mm) | ||||
| 20 | 360 | 650 | 510 | 70 |
| 25 | 390 | 700 | 540 | 70 |
| 32 | 540 | 810 | 650 | 95 |
| 38 | 640 | 960 | 760 | 125 |
| 44 | 710 | 1080 | 850 | 160 |
| 52 | 880 | 1310 | 1060 | 175 |
| 60 | 920 | 1450 | 1130 | 185 |
| 68 | 956 | 1600 | 1250 | 195 |
| 76 | 1120 | 1820 | 1350 | 220 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
