16A Marine Brass Junction Box
Product Image and Technical Diagrams

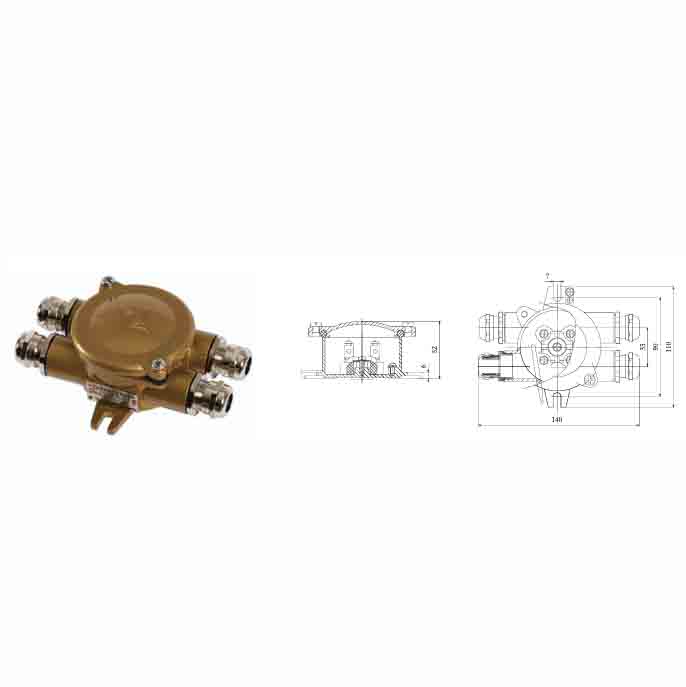

[The image displays a 16A marine brass junction box with a front – view photo, a top – view photo, and two technical diagrams. One diagram shows a cross – sectional view with detailed internal structure and dimensions, and the other is a wiring – diagram indicating different terminal connection configurations.]
Gland Illustration and Terminal Configurations
The wiring – diagram at the bottom shows various terminal connection forms such as -O-, O=, -O- I, etc., which represent different ways of connecting cables to the junction box.
Technical Specifications Table
| Item | Detail for Code 1151 | Detail for Code 1150 | Detail for Code 1152 | Detail for Code 1156 | Detail for Code 1153 | Detail for Code 1155 |
|---|---|---|---|---|---|---|
| Code | 1151 | 1150 | 1152 | 1156 | 1153 | 1155 |
| Voltage | AC250V | AC250V | AC250V | AC250V | AC250V | AC250V |
| General Cable Type | JXH201 | JXH202 | JXH301 | JXH302 | JXH401 | JXH402 |
| Shield Cable Type | JXH211 | JXH212 | JXH311 | JXH312 | JXH411 | JXH412 |
| Weight | 0.67kg | 0.67kg | 0.77kg | 0.77kg | 0.87kg | 0.87kg |
| Protection Class | IP56 | |||||
| Cable Outside Diameter | Ø9 – Ø12 | |||||
| Material | Copper Brass | |||||
| Standard | CB3413 – 1992; DIN89250 |
Attention please: The description may be different with the product, please contact us for quotation.
