12-Strand with a Braided Jacket Rope

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

12-Strand with a Braided Jacket Rope

General

Construction: 12-Strand with a Braided Jacket
Material: Inner Core: HMPE Fiber with Stretchy Part; Outer Jacket: Braided HMPE or Polyester
Density: HMPE Jacket: < 1g/cm³ (Floating), Polyester Jacket: > 1g/cm³ (Sinking)
Melting Point: HMPE/Polyester: 147℃/260℃
Chemical Resistance: Good
UV Resistance: Excellent
Compliant with: OCIMF MEG4 and Q1502

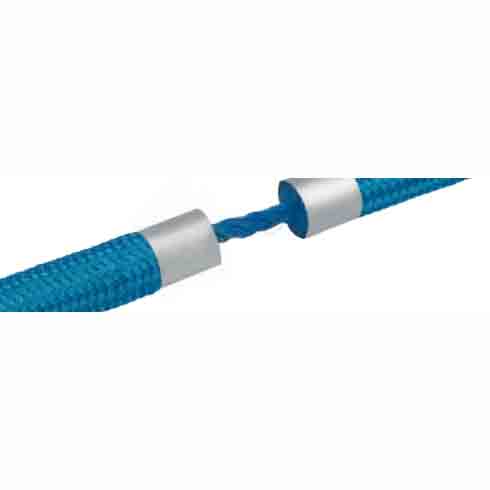

12-Strand with a Braided Jacket Rope is a 12-strand HMPE rope with a braided jacket. The inner core consists of a high-modulus polyethylene (HMPE) fiber and an integrated high-elasticity component. The jacket, which can be made of either HMPE or polyester, protects the inner core and minimizes the risk of recoil, ensuring maximum safety during mooring operations.
The rope features a patented integrated high-elasticity component designed to absorb recoil energy and reduce the risk of snap-back. The outer jacket provides additional protection against abrasion and environmental factors, thereby extending the lifespan of the rope. This design not only ensures operational safety but also provides increased efficiency and durability in a variety of marine applications.

Key Features

Safety first: The RRR construction minimizes the risk of dangerous snap-back recoil in the event of a failure, protecting personnel and equipment.
Excellent abrasion resistance: The braided jacket offers superior protection against abrasion, wear, and environmental factors.
High strength and low weight: The rope is as strong as steel wire rope of the same diameter, but much lighter.
Low elongation: HMPE core ensures low elongation and high dimensional stability.
Excellent UV resistance: The braided jacket protects the rope against the harmful effects of UV radiation.
Low water absorption: The rope retains its properties even when wet.

Benefits

Easy to handle / The inner load-bearing core is protected by a braided jacket, not affected by external abrasion / Torque neutral / High construction stability / Low elongation / Reduce snap back risk.
Application: Mooring and towing of ships and HSLCs, offshore engineering, etc.

12-Strand Performance Parameters (ISO MEG4 & Q1502)

Size (mm)	Circumference (inch)	Weight (kg/100m) HMPE Jacket	Weight (kg/200m) HMPE Jacket	Weight (kg/100m) Polyester Jacket	Weight (kg/200m) Polyester Jacket	ISO MBF (kN)	ISO MBF (Ton)	MEG4 LDBF (kN)	MEG4 LDBF (Ton)
20	2 1/2	263	58.0	275	60.5	293	29.9	264	26.9
24	3	368	81.0	392	86.1	413	42.2	372	38.0
28	3 1/2	492	108.1	531	116.9	561	57.3	505	51.5
32	4	633	139.3	694	152.8	737	75.2	663	67.7
36	4 1/2	794	174.6	881	193.8	939	95.3	831	84.8
40	5	962	211.6	1080	237.6	1144	116.8	1030	105.1
44	5 1/2	1212	266.6	1352	297.4	1378	140.6	1240	126.5
48	6	1422	312.8	1624	357.1	1614	164.6	1450	148.0
52	6 1/2	1652	363.5	1916	421.6	1925	196.1	1730	176.5
56	7	1912	420.6	2243	493.5	2189	223.4	1970	201.0
60	7 1/2	2182	480.0	2608	573.8	2522	257.4	2270	231.6
64	8	2489	547.6	2923	643.1	2858	291.7	2590	264.3
68	8 1/2	2809	618.0	3295	724.9	3256	332.2	2930	299.0
72	9	3159	695.0	3710	816.2	3633	370.7	3270	333.7
76	9 1/2	3449	758.6	4124	918.3	4034	411.6	3620	369.4
80	10	3839	844.6	4630	1018.6	4511	460.3	4060	414.3
84	10 1/2	4246	934.1	5128	1128.1	4933	503.4	4440	453.1
88	11	4621	1016.6	5616	1235.5	5356	546.5	4820	491.8
92	11 1/2	5021	1104.6	6141	1351.1	5817	593.5	5235	534.2
96	12	5421	1192.6	6678	1469.2	6278	640.6	5650	576.5
100	12 1/2	5932	1305.0	7317	1609.7	6997	713.9	6297	642.6
104	13	6400	1408.0	7928	1744.2	7446	759.8	6701	683.8
112	14	7438	1636.1	9267	2038.7	8612	878.7	7750	790.9

Note:

MBL = Minimum Breaking Force per ISO2307.
LDBF = Line Design Break Force per OCIMF MEG4 Appendix B.
Other sizes are available upon request.

Note: The description may be different with the product, please contact us for quotation.
