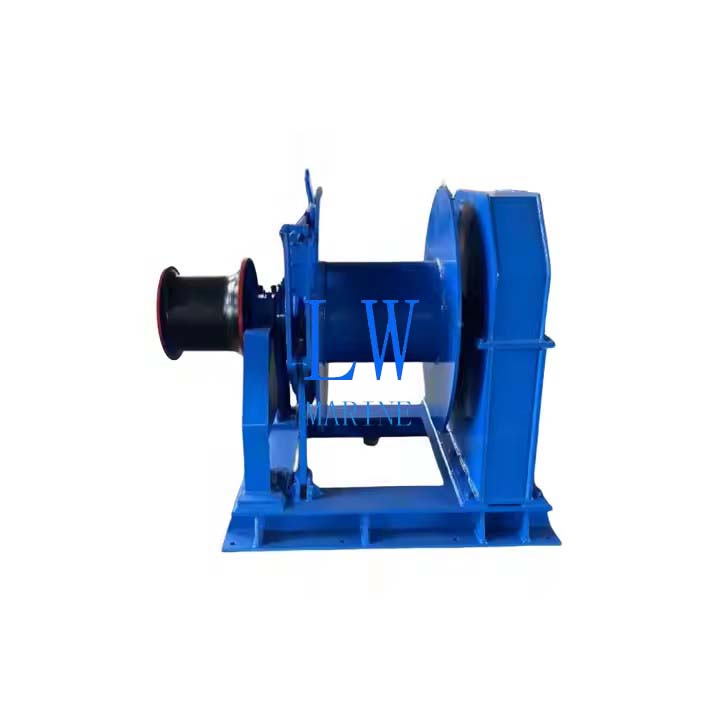

10kN Marine Hydraulic Winch – Compact & Reliable Load Handling
Precision Hydraulic Winching for Light-Duty Applications
The 10kN Marine Hydraulic Winch is engineered for controlled load management in marine, industrial, and utility applications. Featuring a versatile open-gearbox design (with optional closed gearbox), this compact winch delivers reliable performance for operations requiring precision and durability.
Key Applications
✔ Small Boat Handling – Mooring and docking assistance
✔ Industrial Utility – Material positioning and equipment adjustment
✔ Service Vehicles – Compact load management on utility trucks
✔ Marine Deck Operations – Auxiliary line handling on workboats
Technical Specifications
Core Components
✔ 10kN Hydraulic Motor – Smooth power delivery
✔ Open Gearbox (Standard) – Easy maintenance access (Closed gearbox optional)
✔ Manual Brake/Clutch – Direct operator control
✔ Marine-Grade Build – Stainless/aluminum/carbon steel construction
Performance Features
-
Precision Load Control – ±5cm positioning accuracy
-
Corrosion-Resistant – Protective coatings for saltwater/outdoor use
-
Low Maintenance – Open gearbox simplifies inspection
-
Compact Footprint – Ideal for space-constrained installations
Control Options
-
Local Lever Control – Manual operation at winch
-
Remote Control – Wireless operation (optional)
Certifications & Compliance
✔ CCS, BV, LR Certified
✔ ISO 9001 Quality Manufacturing
Parameters:
| Holding Load | Mooring Speed | Rope Diameter | Working Load | Overload | Capacity |
| KN | m/min | mm | KN | KN | m |
| 30 | 12 | 14 | 10 | 15 | 120 |
The description/sizes may be different with goods, please check with us when order.
