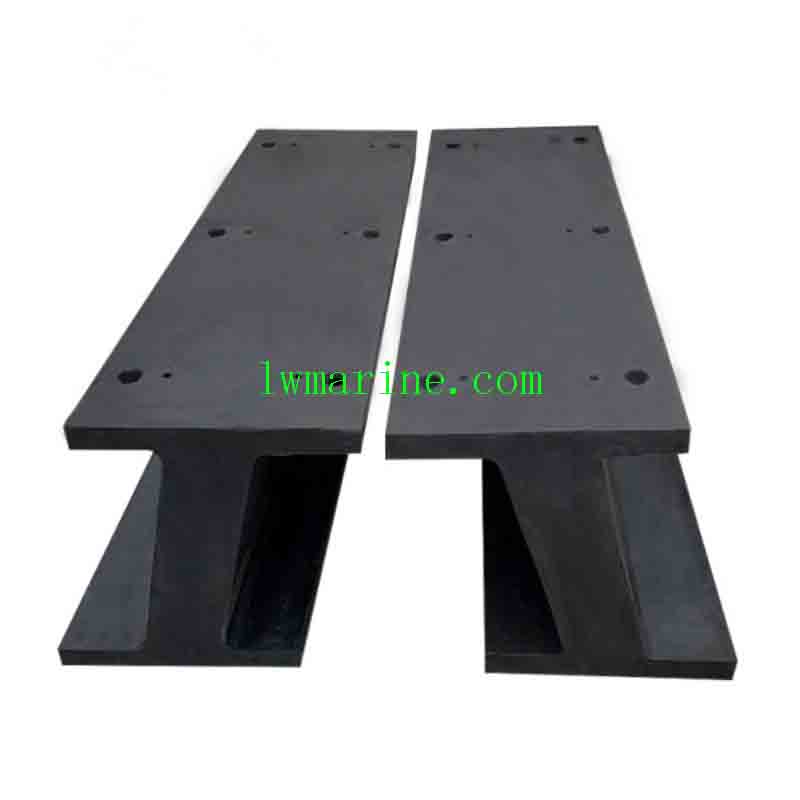

π Type Rubber Fender

China π Type Rubber Fender – High-Performance Modular Dock Fender System

Engineered with an innovative geometric design, our China-manufactured π Type Rubber Fender delivers exceptional energy absorption with minimal reaction force, making it the ideal solution for large-scale docking facilities. This modular fender system combines the main π-shaped rubber unit with a frontal panel and UHMW-PE wear pad, creating a complete marine protection solution for heavy-duty applications. Suitable for both vertical and horizontal installation configurations, it provides versatile protection for docks, ports, and marine terminals handling vessels up to 10,000-ton class and beyond.

Product Features & Technical Advantages

• Advanced Geometric Design: Optimized π-shape configuration ensures maximum energy absorption with low reaction force

• Large Contact Surface Area: Provides superior pressure distribution and reduced surface pressure on vessel hulls

• Flexible Installation Options: Can be mounted vertically or horizontally without supporting anchor chains

• Adjustable Support System: Span between supporting arms is customizable for different docking configurations

• High Compression Capability: Rated compression deformation reaches 52.5% for maximum energy dissipation

• Easy Maintenance & Replacement: Modular design simplifies inspection, maintenance, and component replacement

• Heavy-Duty Application: Ideal for large-scale docks and ports handling 10,000-ton class vessels

Technical Specifications – Dimensional Data

Technical Specifications – Installation Configurations
