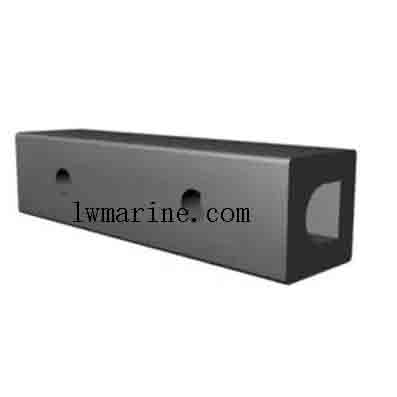

Square Rubber Fender
The Square Rubber Fender is also called Extruded Rubber Fender. Square Rubber Fenders come in a variety of designs and sizes. They are often used on the bow or stern of small tugboats as propelling fenders because they can be installed closely together to reduce the risk of ropes or protrusions getting stuck between adjacent parts.
Extruded fenders are simple rubber profiles, usually attached with bolts to the structure. Extrusions can be made in virtually any length then cut and drilled to suit each application. Pre-curved sections and special sizes are available on request. Usually black in colour.
Application
- Jetties and wharves for small craft
- Tugs and workboats
- Pontoon protection
- Inland waterways
- General purpose fendering
Performance
The performance data is presented in two sets of tables and graphs:

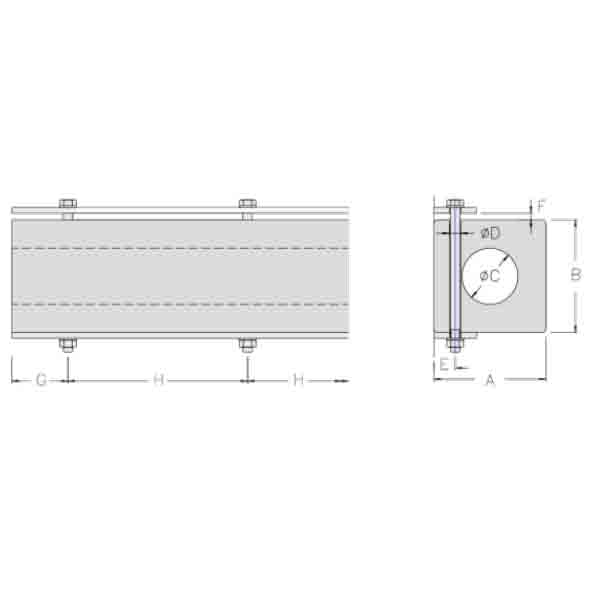

First Set
- Graph: Reaction Force (kN) vs. Deflection (%) and Energy Absorption (kNm) vs. Deflection (%).
| SPEC. | R (kN) | E (kNm) |
|---|---|---|
| SBD-D100 | 175 | 2.6 |
| SBD-D150 | 263 | 6.3 |
| SBD-D200 | 355 | 11.1 |
| SBD-D250 | 436 | 17.4 |
| SBD-D300 | 521 | 25.1 |
| SBD-D350 | 610 | 34 |
| SBD-D400 | 713 | 44 |
| SBD-D500 | 875 | 68 |

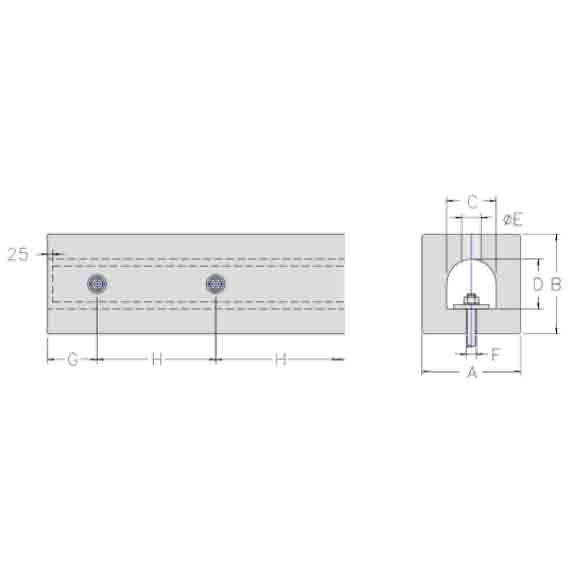

Second Set
- Graph: Reaction Force (kN) vs. Deflection (%) and Energy Absorption (kNm) vs. Deflection (%).
| SPEC. | R (kN) | E (kNm) |
|---|---|---|
| SBD-C100 | 175 | 2.6 |
| SBD-C150 | 263 | 6.3 |
| SBD-C200 | 355 | 11.1 |
| SBD-C250 | 436 | 17.4 |
| SBD-C300 | 521 | 25.1 |
| SBD-C350 | 610 | 34 |
| SBD-C400 | 713 | 44 |
| SBD-C500 | 875 | 68 |
Units: mm, kg/m.
Attention please: The description might be incorrect, please contact us for confirmation.
